60FETO (1995)
Electrical 2

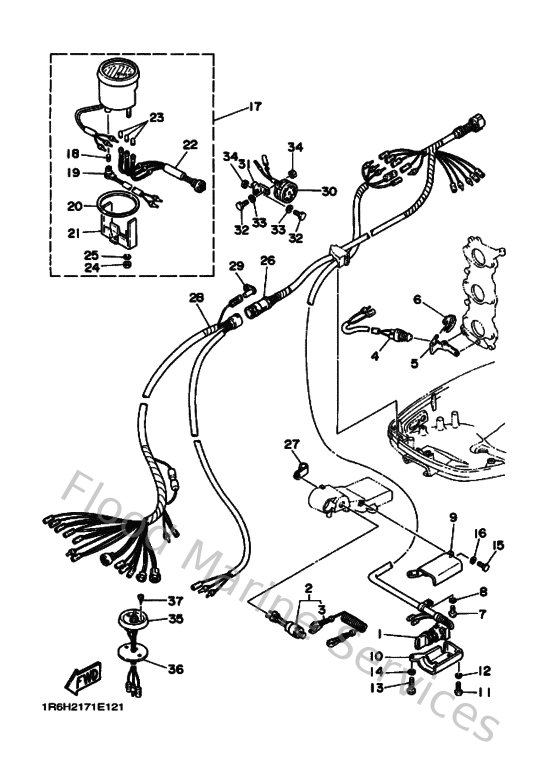

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6H5825100000
Main Switch assembly
Loading…
↗
2
688825750100
Engine stop switch assembly
Loading…
↗
3
682825560000
Lanyard, stop switch
Loading…
↗
4
688825401200
Neutral switch assembly
Loading…
↗
5
6H3825540000
Stay, neutral switch
Loading…
↗
6
663825550100
Plate
Loading…
↗
7
985800601200
Screw, pan head(62j)
Loading…
↗
8
929950610000
Washer(6a1)
Loading…
↗
9
6978252E00EK
Main Switch Comp
Loading…
↗
10
6978252F00EK
Cover, Main Switch 2
Loading…
↗
11
925800602500
Screw, pan head(6b0)
Loading…
↗
13
973130603000
Bolt
Loading…
↗
14
929900610000
Washer(6a1)
Loading…
↗
15
970800602000
Bolt(7u8)
Loading…
↗
17
6Y5835400400
Tachometer assembly
Loading…
↗
18
6Y5835170000
Bulb (12v-1.7w)
Loading…
↗
19
6Y5835364000
Socket, meter
Loading…
↗
20
6Y5835230000
Damper
Loading…
↗
21
6Y5835140000
Plate, fitting
Loading…
↗
23
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
24
953030560000
Nut, hexagon (663)
Loading…
↗
25
929900510000
Ybs67-5 washer, spring
Loading…
↗
27
9046508M4300
Clamp
Loading…
↗
29
6A0821190000
Cover, lead wire
Loading…
↗
30
688833831100
Buzzer
Loading…
↗
31
6H5833860000
Buzzer Stay
Loading…
↗
32
970130501000
Bolt, hexagon
Loading…
↗
35
688825631000
Trim & tilt switch
Loading…
↗
36
688823880000
Plate
Loading…
↗
37
977804011600
Screw,panh.tapping
Loading…
↗
