Yamaha Outboard Parts - Electrical 2 - F45A (1997) | Flood Marine

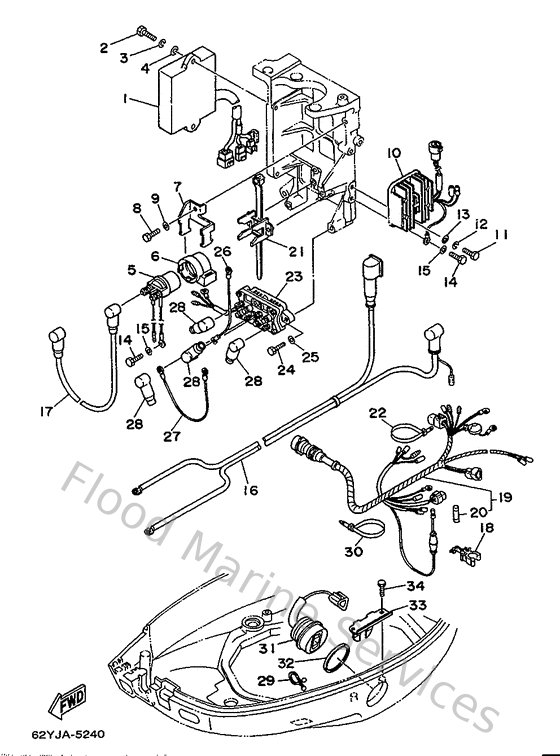

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
62Y855400100
C.d.i. Unit Assembly
Loading…

↗
2
970950602000
Bolt(7u8)
Loading…

↗
3
929950610000
Washer(6a1)
Loading…

↗
4
929900660000
Washer, plain (646)
Loading…

↗
5
6G1819411000
Starter relay
Loading…

↗
6
6G1819520000
Holder, relay
Loading…

↗
7
6L2819450000
Plate, switch fitting
Loading…

↗
8
970950601400
Bolt(gj3)
Loading…

↗
11
9010106M2700
Bolt
Loading…

↗
14
970950601200
Bolt(gh1)
Loading…

↗
16
66T82105J100
Battery cable
Loading…

↗
17
6E5821170000
Wire, lead
Loading…

↗
18
6G5821520000
Holder, fuse
Loading…

↗
19
62Y825901000
Wire Harness assembly
Loading…

↗
20
682821510000
Fuse
Loading…

↗
21
688825940000
Clamp
Loading…

↗
22
437839361100
Band, switch cord
Loading…

↗
23
6H1819500100
Relay aasy
Loading…

↗
24
970950602500
Bolt
Loading…

↗
26
6H2819490100
Wire, lead
Loading…

↗
27
6H2819491100
Wire, lead
Loading…

↗
28
682821190100
Cover, lead wire
Loading…

↗
29
904641603900
Clamp (3y2)
Loading…

↗
31
63D825631100
Trim & tilt switch assembly
Loading…

↗
32
6E5825870000
Gasket
Loading…

↗
33
62Y836140000
Bracket
Loading…

↗
