250AETOXLX (1993)
Electrical 3

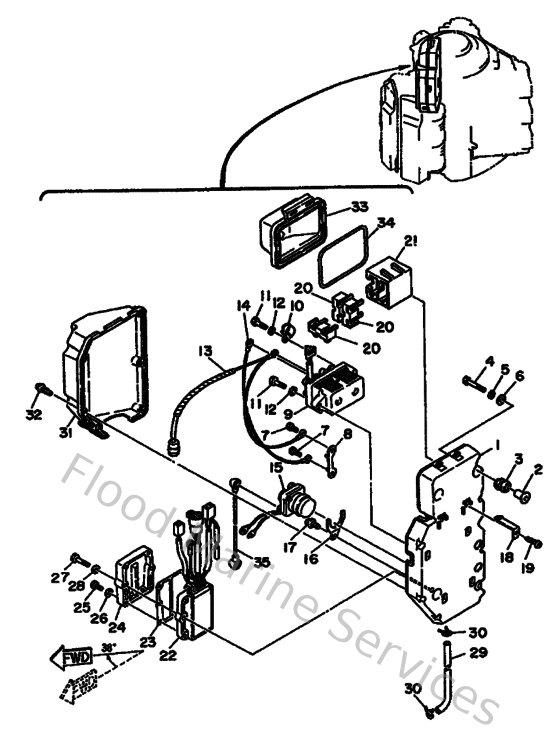

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
61A819480000
Bracket
Loading…
↗
2
624425420000
Collar
Loading…
↗
3
6A0823170000
Damper, ignition coil
Loading…
↗
4
970800603000
Bolt(jf7)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
9020106M6200
Washer, plate (6e5)
Loading…
↗
7
973130601400
Bolt(gj3)
Loading…
↗
8
61A871490000
Connector
Loading…
↗
9
61A819500000
Relay assembly
Loading…
↗
10
904650802800
Clamp (1e6)
Loading…
↗
11
973130603000
Bolt
Loading…
↗
13
61A819491000
Wire, lead
Loading…
↗
14
61A819490000
Wire, lead
Loading…
↗
15
61A819410000
Starter relay assembly
Loading…
↗
16
61A819520000
Holder, relay
Loading…
↗
17
977805061200
Screw, tapping(61a)
Loading…
↗
18
61A821710000
Stay, fuse box
Loading…
↗
20
61A821500000
Fuse holder assembly
Loading…
↗
21
61A821530000
Stay, fuse holder
Loading…
↗
22
61A819600000
Rectifier & regulator assembly
Loading…
↗
23
69J81975A000
Plate, rectifier fitting
Loading…
↗
24
61A81972009M
Cover, rectifier
Loading…
↗
25
973130602500
Bolt
Loading…
↗
29
61A243140000
Pipe 1
Loading…
↗
30
904670800400
Clip, pipe 6162435600
Loading…
↗
31
61A819420000
Cover
Loading…
↗
32
9016405M0000
Screw, tapping (6f5)
Loading…
↗
33
61A821540000
Case
Loading…
↗
34
61A821760000
Damper
Loading…
↗
35
61A821170000
Wire, lead
Loading…
↗
