250AETOXLX (2001)
Fuel

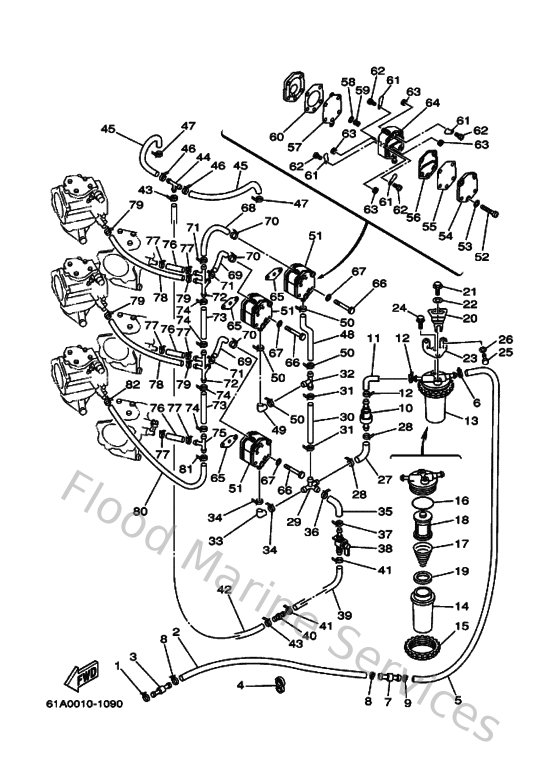

Diagram: Fuel
Parts List
Reference
Description
Price
1
9046511M1000
Clamp
Loading…
↗
2
9044513M1700
Hose(l2700)
Loading…
↗
3
6R3243770000
Pipe, joint 3
Loading…
↗
4
9046413M3400
Clamp(6r3)
Loading…
↗
5
61A243130000
Pipe 3
Loading…
↗
6
904651009800
Clamp
Loading…
↗
9
80L263970000
Band
Loading…
↗
10
6R5244080000
Fuel feed assembly
Loading…
↗
11
61A243110000
Pipe, fuel 1
Loading…
↗
13
61A245600400
Filter assembly
Loading…
↗
14
61A245210000
Cup, filter
Loading…
↗
15
65L245310000
Nut
Loading…
↗
16
61A245640000
O-ring
Loading…
↗
17
61A245770100
Spring
Loading…
↗
18
61A245630000
Element, filter
Loading…
↗
19
61A244690000
Float, water level
Loading…
↗
20
65L245580000
Holder, filter
Loading…
↗
21
975950641600
Bolt, with washer(62x)
Loading…
↗
22
902010606800
Washer,plate (6k8)
Loading…
↗
23
61A245660100
Bracket, filter
Loading…
↗
24
975950651400
Bolt(gj3)
Loading…
↗
25
970950601600
Bolt, hexagon deep recess
Loading…
↗
26
929950660000
Washer, plain (646)
Loading…
↗
29
6G5243770000
Pipe, joint 2
Loading…
↗
30
6G5243170100
Pipe 7
Loading…
↗
32
6E5243780000
Pipe, joint 3
Loading…
↗
33
6E5243150000
Pipe 5
Loading…
↗
38
61A245000000
Fuel cock assembly 1
Loading…
↗
39
9044510M4300
Hose (l400)
Loading…
↗
40
6E5217440000
Breezer
Loading…
↗
42
9044510M3400
Hose (L550)
Loading…
↗
44
688243780000
Pipe, joint
Loading…
↗
45
9044510M1700
Hose (l400)
Loading…
↗
48
6G5243150000
Pipe 5
Loading…
↗
51
6E5244100300
Fuel pump assembly
Loading…
↗
52
985030503500
Screw, pan head (686)
Loading…
↗
53
929900560000
Washer, plain (646)
Loading…
↗
54
6E5244130000
Body 2
Loading…
↗
55
6E5244710000
Diaphragm
Loading…
↗
56
6E5244350000
Gasket, body 2
Loading…
↗
57
6E5244110000
Diaphragm
Loading…
↗
58
648244240000
Seat,spring
Loading…
↗
59
6E5244230000
Spring, diaphragm
Loading…
↗
60
6E5244340200
Gasket, body
Loading…
↗
61
62Y244210100
Valve, check
Loading…
↗
62
6A0143250000
Screw, pan head
Loading…
↗
63
953800360000
Nut (6g8)
Loading…
↗
64
6E5244121000
Body 1
Loading…
↗
65
65024431A000
Gasket,fuel pump
Loading…
↗
66
970950605000
Bolt(jf7)
Loading…
↗
67
929900660000
Washer, plain (646)
Loading…
↗
69
9044513M3100
Hose (L85)
Loading…
↗
72
61A243770000
Pipe Joint 3
Loading…
↗
73
9044513M1400
Hose (l90)
Loading…
↗
76
904451357900
Hose (l90)
Loading…
↗
78
9044513M1200
Hose (L235)
Loading…
↗
80
9044513M1100
Pipe, fuel 1
Loading…
↗
