25DMH (1998)
Fuel

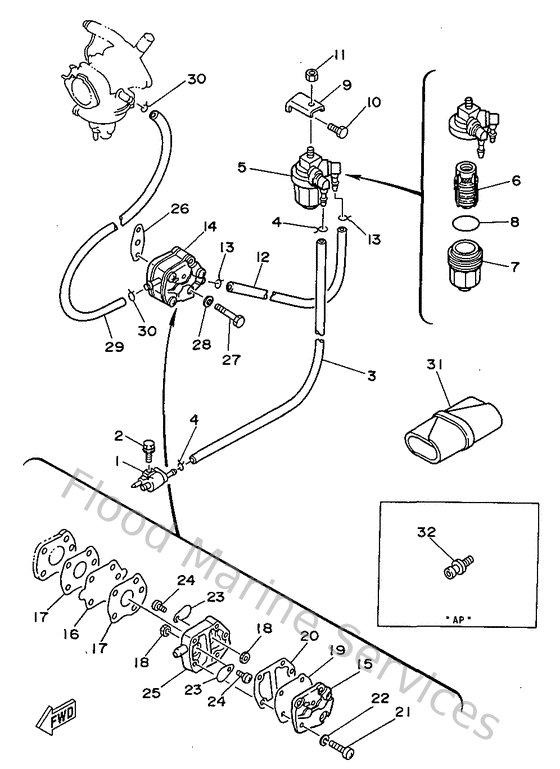

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
90445090F600
Hose (l1500)
Loading…
↗
4
904670800400
Clip, pipe 6162435600
Loading…
↗
5
61N245600000
Filter assembly
Loading…
↗
6
61N245630000
Element, filter
Loading…
↗
7
61N245210000
Cup, filter
Loading…
↗
8
932103273800
O-ring(1wg)
Loading…
↗
9
648245660100
Bracket, Filter
Loading…
↗
10
973130601400
Bolt(gj3)
Loading…
↗
11
988800810000
Nut, hex.
Loading…
↗
12
664243110000
Pipe, Fuel 1
Loading…
↗
14
692244100000
Fuel pump assembly
Loading…
↗
15
648244130100
Cover, pump
Loading…
↗
16
692244110000
Diaphragm
Loading…
↗
17
648244340100
Gasket, body
Loading…
↗
18
953800360000
Nut (6g8)
Loading…
↗
19
663244110000
Diaphragm
Loading…
↗
20
648244350200
Gasket, body 2
Loading…
↗
21
985170503000
Screw, pan head
Loading…
↗
22
929900510000
Ybs67-5 washer, spring
Loading…
↗
23
6A0244210100
Valve, check
Loading…
↗
24
6A0143250000
Screw, pan head
Loading…
↗
25
6A0244120200
Body 1
Loading…
↗
26
65024431A000
Gasket,fuel pump
Loading…
↗
27
973950604000
Bolt (682)
Loading…
↗
28
929900660000
Washer, plain (646)
Loading…
↗
29
4KN243110100
Pipe, fuel 1
Loading…
↗
31
656W28100200
Tool kit
Loading…
↗
32
6E0281930094
Plug, water check
Loading…
↗
