Yamaha Outboard Parts - Fuel - 90AETOL (1989) | Flood Marine

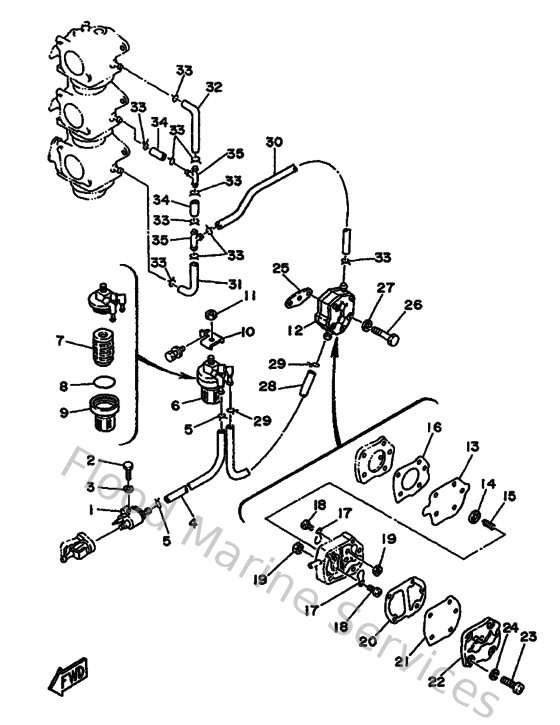

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
2
973130602000
Bolt(7u8)
Loading…

↗
3
929900610000
Washer(6a1)
Loading…

↗
4
90445092K100
Hose (l420)
Loading…

↗
5
904670800400
Clip, pipe 6162435600
Loading…

↗
6
655245600100
Filter assembly
Loading…

↗
7
6F5245630000
Element, filter
Loading…

↗
8
9321037M2500
O-ring (655)
Loading…

↗
10
6H1245660000
Bracket, Filter
Loading…

↗
11
953030860000
Nut(6l2)
Loading…

↗
12
692244100000
Fuel pump assembly
Loading…

↗
13
648244110000
Diaphragm
Loading…

↗
15
648244230000
Spring,diaphragm
Loading…

↗
16
648244340100
Gasket, body
Loading…

↗
19
988130310000
Nut
Loading…

↗
20
648244350200
Gasket, body 2
Loading…

↗
21
663244110000
Diaphragm
Loading…

↗
22
6A0244130000
Cover, pump
Loading…

↗
23
985800553000
Ybs86-530 screw,panhead
Loading…

↗
24
929900510000
Ybs67-5 washer, spring
Loading…

↗
25
650244310000
Gasket,fuel pump
Loading…

↗
26
970950604000
Bolt (682)
Loading…

↗
27
929900660000
Washer, plain (646)
Loading…

↗
28
6H1243140000
Pipe 4
Loading…

↗
30
90445090F600
Hose (l1500)
Loading…

↗
31
688243130000
Pipe, fuel 2
Loading…

↗
32
688243140000
Pipe, fuel 2
Loading…

↗
34
904450922000
Hose (l1500)
Loading…

↗
35
688243780000
Pipe, joint
Loading…

↗
