Yamaha Outboard Parts - Fuel - E40XMH (2001) | Flood Marine

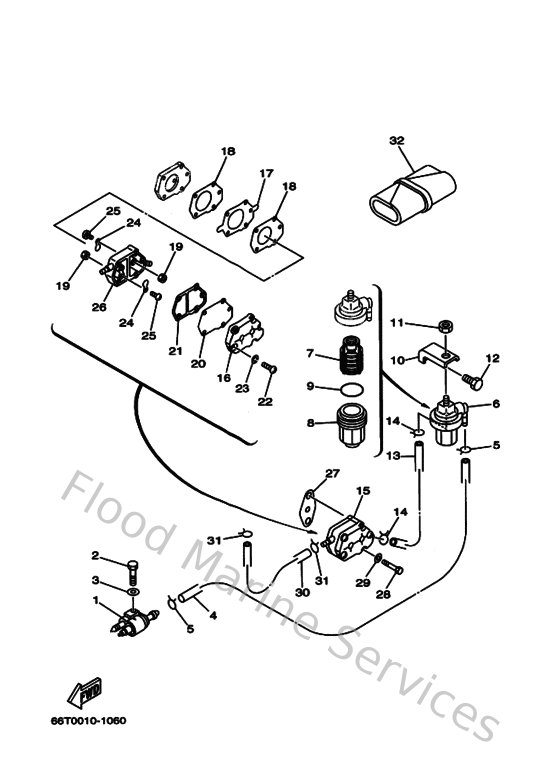

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
2
970950603000
Bolt(jf7)
Loading…

↗
3
929950660000
Washer, plain (646)
Loading…

↗
4
904450902100
Hose (l865)
Loading…

↗
5
904670800400
Clip, pipe 6162435600
Loading…

↗
6
61N245600000
Filter assembly
Loading…

↗
7
61N245631000
Element, filter
Loading…

↗
8
61N245210000
Cup, filter
Loading…

↗
9
932103273800
O-ring(1wg)
Loading…

↗
10
648245660200
Bracket, filter
Loading…

↗
11
988800810000
Nut, hex.
Loading…

↗
12
970130601400
Bolt(gj3)
Loading…

↗
13
904450908600
Hose (l1500)
Loading…

↗
15
692244100000
Fuel pump assembly
Loading…

↗
16
6A0244130000
Cover, pump
Loading…

↗
17
692244110000
Diaphragm
Loading…

↗
18
648244340100
Gasket, body
Loading…

↗
19
953800360000
Nut (6g8)
Loading…

↗
20
663244110000
Diaphragm
Loading…

↗
21
648244350200
Gasket, body 2
Loading…

↗
22
985030502800
Ybs86-530 screw,panhead
Loading…

↗
23
929900510000
Ybs67-5 washer, spring
Loading…

↗
24
62Y244210100
Valve, check
Loading…

↗
25
6A0143250000
Screw, pan head
Loading…

↗
26
6A0244120200
Body 1
Loading…

↗
27
65024431A000
Gasket,fuel pump
Loading…

↗
28
970950604000
Bolt (682)
Loading…

↗
29
929900660000
Washer, plain (646)
Loading…

↗
32
676W28100100
Tool kit
Loading…

↗
