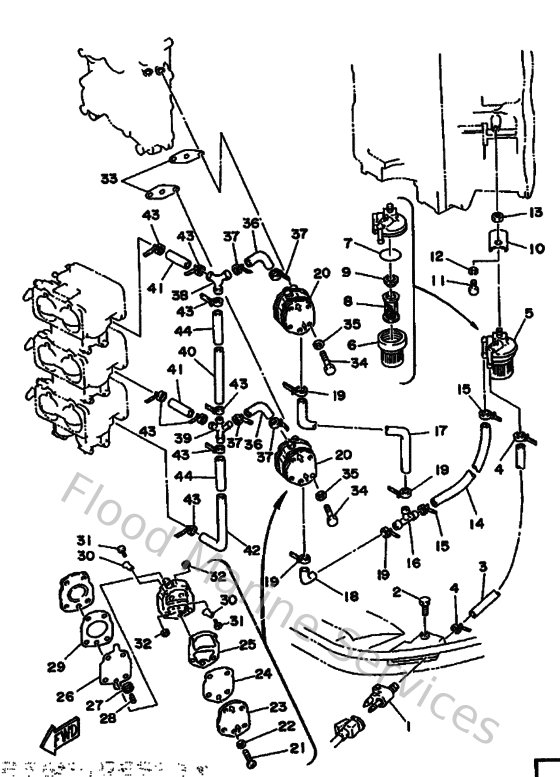

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6E5243040100
Fuel pipe joint comp. 1
Loading…

↗
2
973130602000
Bolt(7u8)
Loading…

↗
4
9046511M1000
Clamp
Loading…

↗
5
6R3245600000
Filter assembly
Loading…

↗
7
9321037M2500
O-ring (655)
Loading…

↗
8
6F5245630000
Element, filter
Loading…

↗
9
655245640000
Packing, filter
Loading…

↗
10
648245660100
Bracket, Filter
Loading…

↗
11
973130601400
Bolt(gj3)
Loading…

↗
12
929950610000
Washer(6a1)
Loading…

↗
13
953030860000
Nut(6l2)
Loading…

↗
14
6G5243140000
Pipe 4
Loading…

↗
16
6E5243780000
Pipe, joint 3
Loading…

↗
17
6G5243150000
Pipe 5
Loading…

↗
18
6E5243150000
Pipe 5
Loading…

↗
20
6E5244100100
Fuel pump assembly
Loading…

↗
21
985800503500
Screw, pan head (686)
Loading…

↗
22
929900560000
Washer, plain (646)
Loading…

↗
23
6E5244130000
Body 2
Loading…

↗
24
6E5244710000
Diaphragm
Loading…

↗
25
6E5244350000
Gasket, body 2
Loading…

↗
26
6E5244110000
Diaphragm
Loading…

↗
27
648244240000
Seat,spring
Loading…

↗
28
6E5244230000
Spring, diaphragm
Loading…

↗
29
6E5244340200
Gasket, body
Loading…

↗
30
6A0244210100
Valve, check
Loading…

↗
32
988130310000
Nut
Loading…

↗
33
650244310000
Gasket,fuel pump
Loading…

↗
34
970130605000
Bolt, hexagon
Loading…

↗
35
929900660000
Washer, plain (646)
Loading…

↗
36
6G5243161000
Pipe 6
Loading…

↗
38
6G5243760000
Pipe, joint 1
Loading…

↗
39
6G5243770000
Pipe, joint 2
Loading…

↗
40
6G5243170100
Pipe 7
Loading…

↗
41
6G5243181000
Hose (l90)
Loading…

↗
42
6G5243191000
Pipe 9
Loading…

↗
44
9044615M0700
Hose(6g4)
Loading…

↗
