70BETO (1985)
Fuel 2

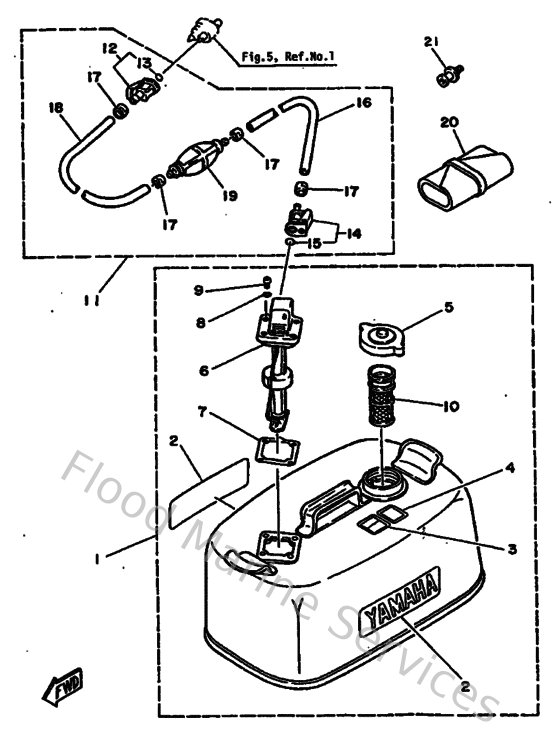

Diagram: Fuel 2
Parts List
Reference
Description
Price
3
6Y1242546000
Graphic
Loading…
↗
5
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1242600000
Fuel meter assembly
Loading…
↗
7
6Y1242680000
Gasket, fuel meter
Loading…
↗
8
6Y1243290000
Seal
Loading…
↗
10
6Y1241670000
Strainer
Loading…
↗
11
6Y1243060200
Fuel pipe comp. 1
Loading…
↗
12
655243050100
Fuel pipe joint comp. 2
Loading…
↗
13
932100828700
O-ring (655)
Loading…
↗
14
6Y1243050600
Fuel pipe joint comp. 2
Loading…
↗
16
9044511M8000
Hose (l3000)
Loading…
↗
17
650243510000
Band 1
Loading…
↗
18
9044511M7800
Hose (l1000)
Loading…
↗
19
6YL243606300
Primer pump assembly
Loading…
↗
20
6E0281000000
Tool kit
Loading…
↗
21
6E0281930094
Plug, water check
Loading…
↗
3
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
9
9015705M1900
Screw, pan head
Loading…
↗
13
6Y1243050000
Fuel pipe joint comp. 2
Loading…
↗
15
9044511M6000
Hose
Loading…
↗
16
650243515100
Band 1
Loading…
↗
18
6Y1243600000
Primer pump assembly
Loading…
↗
