F15AMH (1998)
Fuel 2

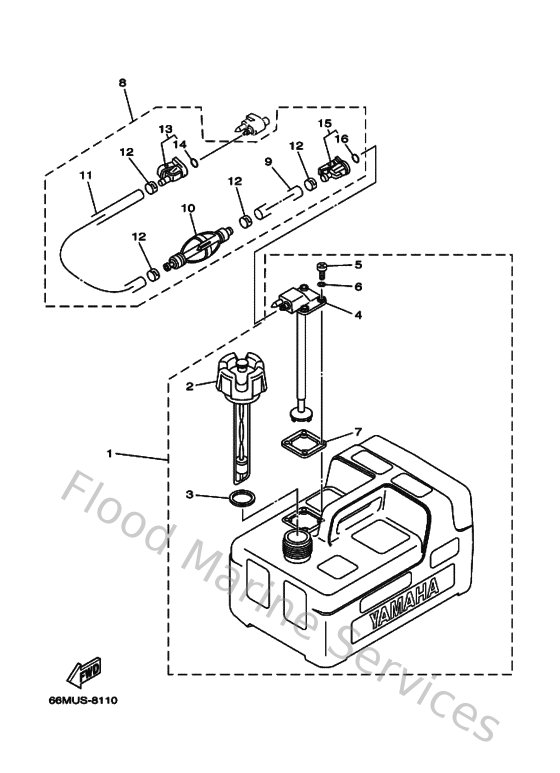

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
6YL242010000
Fuel Tank Assembly (12 L)
Loading…
↗
2
6YL246100000
Cap Assembly
Loading…
↗
3
6YL246410000
Gasket, cap 1
Loading…
↗
4
6YL242600100
Fuel meter assembly
Loading…
↗
5
985860501600
Screw, pan head
Loading…
↗
6
6Y1243290000
Seal
Loading…
↗
7
6YL242680000
Gasket, fuel meter
Loading…
↗
8
6YL243066400
Fuel pipe comp. 1
Loading…
↗
9
9044511M0600
Hose (l3000)
Loading…
↗
10
6Y1243605100
Primer pump assembly
Loading…
↗
11
9044511M0500
Hose (l1000)
Loading…
↗
12
650243515100
Band 1
Loading…
↗
13
6G1243050100
Fuel pipe joint comp. 2
Loading…
↗
14
932100828700
O-ring (655)
Loading…
↗
15
6Y1243050200
Fuel pipe joint comp. 2
Loading…
↗
