L250AETO (1992)
Fuel 3

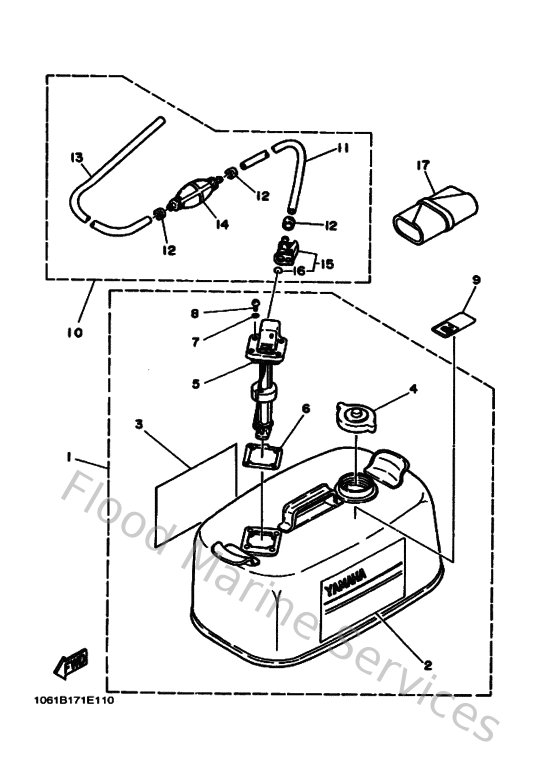

Diagram: Fuel 3
Parts List
Reference
Description
Price
3
6Y1242452000
Graphic, Side
Loading…
↗
4
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1242680000
Gasket, fuel meter
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
9015705M1900
Screw, pan head
Loading…
↗
10
6Y2243064000
Fuel pipe comp. 1
Loading…
↗
11
9044513M0100
Hose (l2050)
Loading…
↗
12
6E5243515100
Band 1
Loading…
↗
14
6Y2243605100
Primer pump assembly
Loading…
↗
15
6Y2243050100
Fuel pipe joint comp. 2
Loading…
↗
16
932100828700
O-ring (655)
Loading…
↗
17
656W28100100
Tool kit
Loading…
↗
