Yamaha Outboard Parts - Fuel Tank 2 - FT9.9DMHSL (2000) | Flood Marine

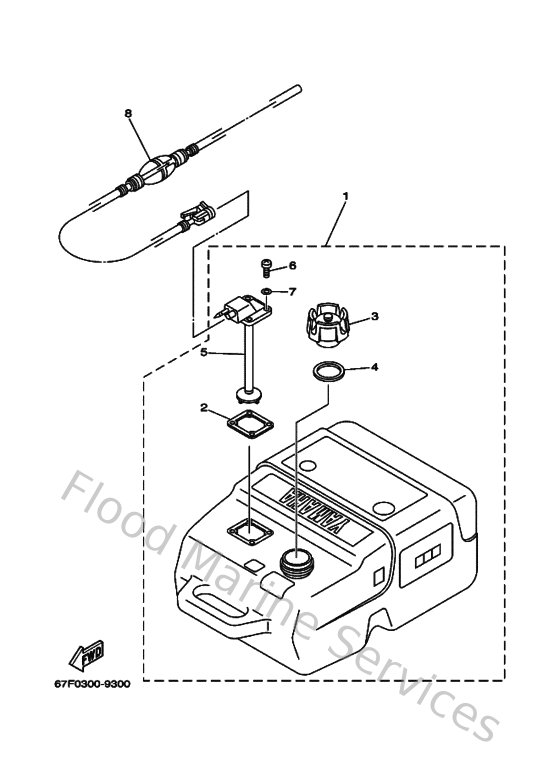

Diagram: Fuel Tank 2

Diagram

Parts List

Reference
Description
Price


1
6YK242011000
Fuel Tank assembly (25L)
Loading…

↗
2
6YL242680100
Gasket, fuel meter
Loading…

↗
3
6YK246101000
Cap assembly
Loading…

↗
4
6YL246410000
Gasket, cap 1
Loading…

↗
5
6YK242600100
Fuel meter assembly
Loading…

↗
6
9015705M1600
Screw, pan head
Loading…

↗
7
6YL243290000
Seal
Loading…

↗
8
6YL243065100
Fuel pipe comp. 1
Loading…

↗
