D150HETO (2002)
GENERATOR

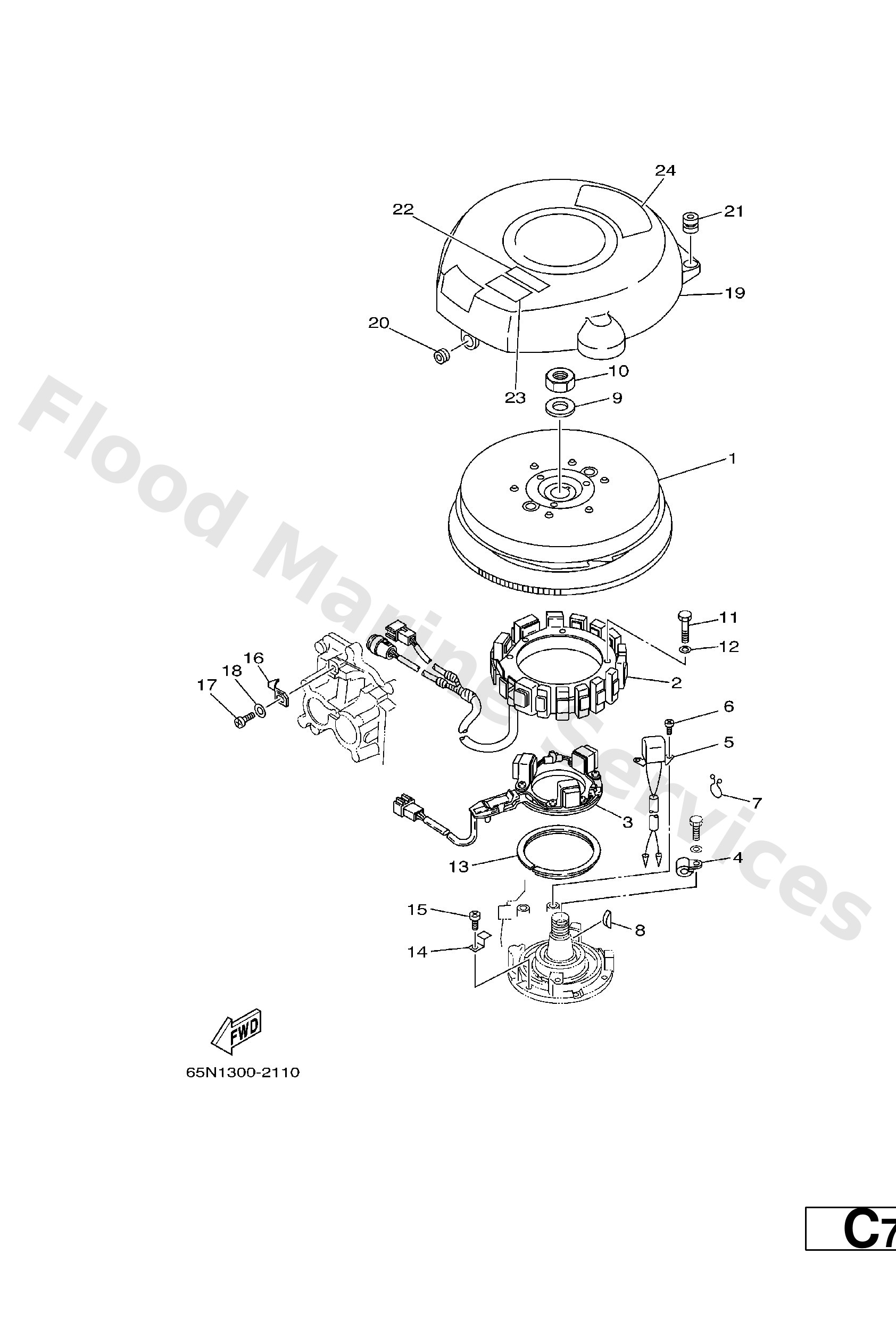

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
64D8555002
Rotor assembly
Loading…
↗
2
6R38551000
Stator assembly
Loading…
↗
3
64D8558000
Coil, pulser
Loading…
↗
4
9046506M86
Clamp
Loading…
↗
5
6R58589501
Crank position sender
Loading…
↗
6
9788005012
Screw,pan head (646)
Loading…
↗
7
9046415M11
Clamp (3y2)
Loading…
↗
8
9028005015
Key, woodruff
Loading…
↗
9
9020121M18
Washer, plate (663)
Loading…
↗
10
9017020137
Nut, hexagon(663)
Loading…
↗
11
9701306070
Bolt(62j)
Loading…
↗
12
9290306600
Washer, plain (646)
Loading…
↗
13
6884161100
Retainer, magneto base 1
Loading…
↗
14
6884161200
Retainer, magneto base 2
Loading…
↗
15
9788006018
Screw, pan head(6e5)
Loading…
↗
16
6E58133200
Plate, timing
Loading…
↗
17
9788506010
Screw pan head
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
64D8133701
Cover, Flywheel
Loading…
↗
20
9048013M24
Grommet (6e9)
Loading…
↗
21
6638231701
Damper, ignition coil
Loading…
↗
22
6A18362551
Mark 5
Loading…
↗
23
6A18362541
Mark 5
Loading…
↗
24
64E1448800
Label, caution
