Yamaha Outboard Parts - GENERATOR - LZ300AETO (2007) | Flood Marine

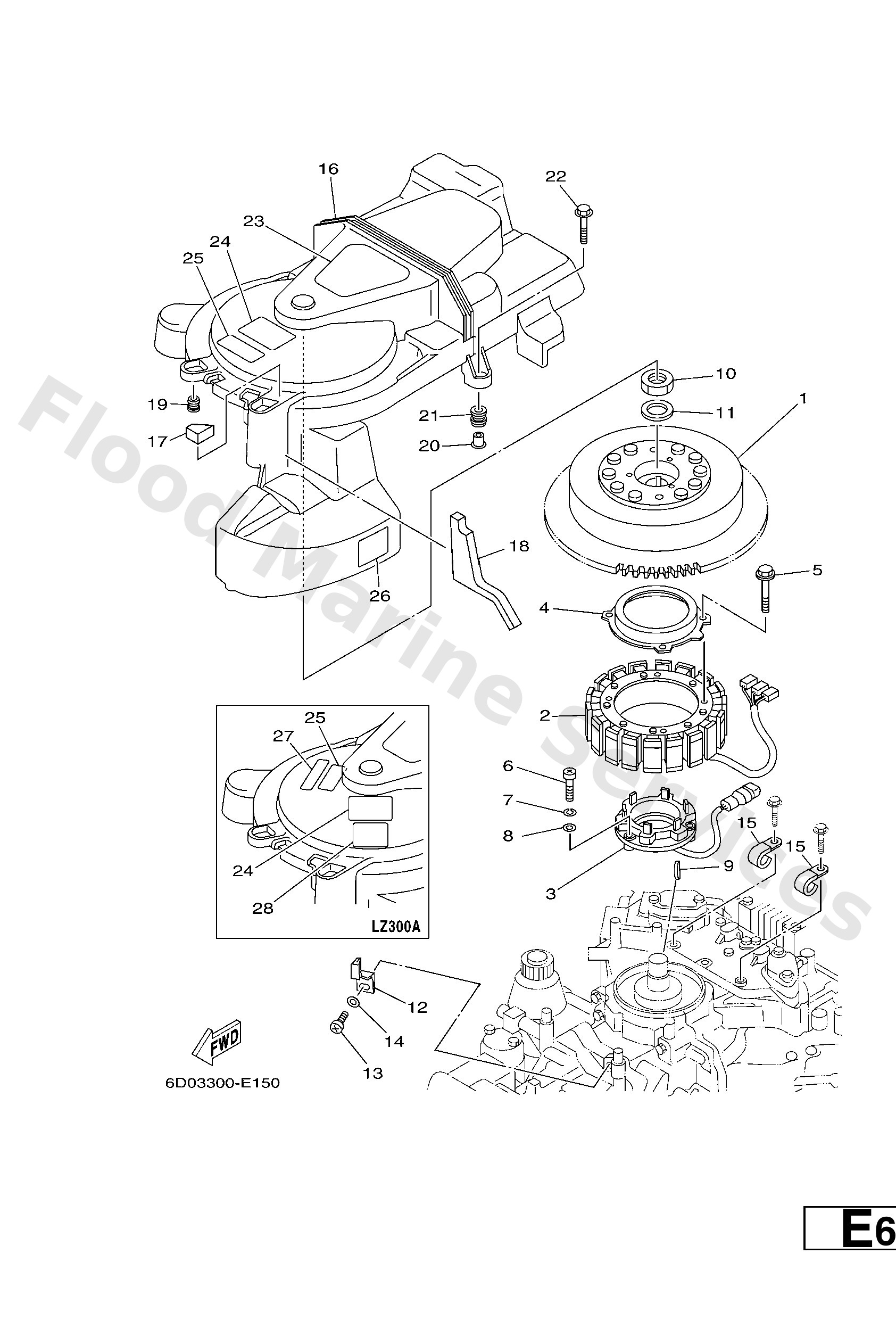

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
60V8145000
Rotor assembly
Loading…

↗
2
60V8141002
Stator assembly
Loading…

↗
3
60V8558010
Coil, pulser
Loading…

↗
4
61A8372100
Cover
Loading…

↗
5
9011006127
Bolt, hexagon socket head
Loading…

↗
6
9788505030
Ybs86-530 screw,panhead
Loading…

↗
7
9299505100
Ybs67-5 washer, spring
Loading…

↗
8
9299505600
Washer, plain (646)
Loading…

↗
9
9028005015
Key, woodruff
Loading…

↗
10
9017024M22
Nut(61a)
Loading…

↗
11
9020125M02
Washer, plate(61a)
Loading…

↗
12
60V8133200
Plate, Timing
Loading…

↗
13
9788506010
Screw pan head
Loading…

↗
14
9299506600
Washer, plain (646)
Loading…

↗
15
9046506M86
Clamp
Loading…

↗
16
60V8133701
Cover, flywheel
Loading…

↗
17
6D08351310
Damper
Loading…

↗
18
6D08351300
Damper
Loading…

↗
19
6C58231700
Damper, ignition coil
Loading…

↗
20
9038706119
Collar
Loading…

↗
21
6A08231700
Damper, ignition coil
Loading…

↗
22
9589506030
Bolt, flange deep recess
Loading…

↗
23
60V1448800
Label, caution
Loading…

↗
24
6A18362551
Mark 5
Loading…

↗
25
6A18362541
Mark 5
Loading…

↗
26
6E58571160
Mark, Caution
Loading…

↗
27
6K18362341
Mark 3
Loading…

↗
28
6K18362350
Mark 3
Loading…

↗
