E55CMH (2003)
GENERATOR 1

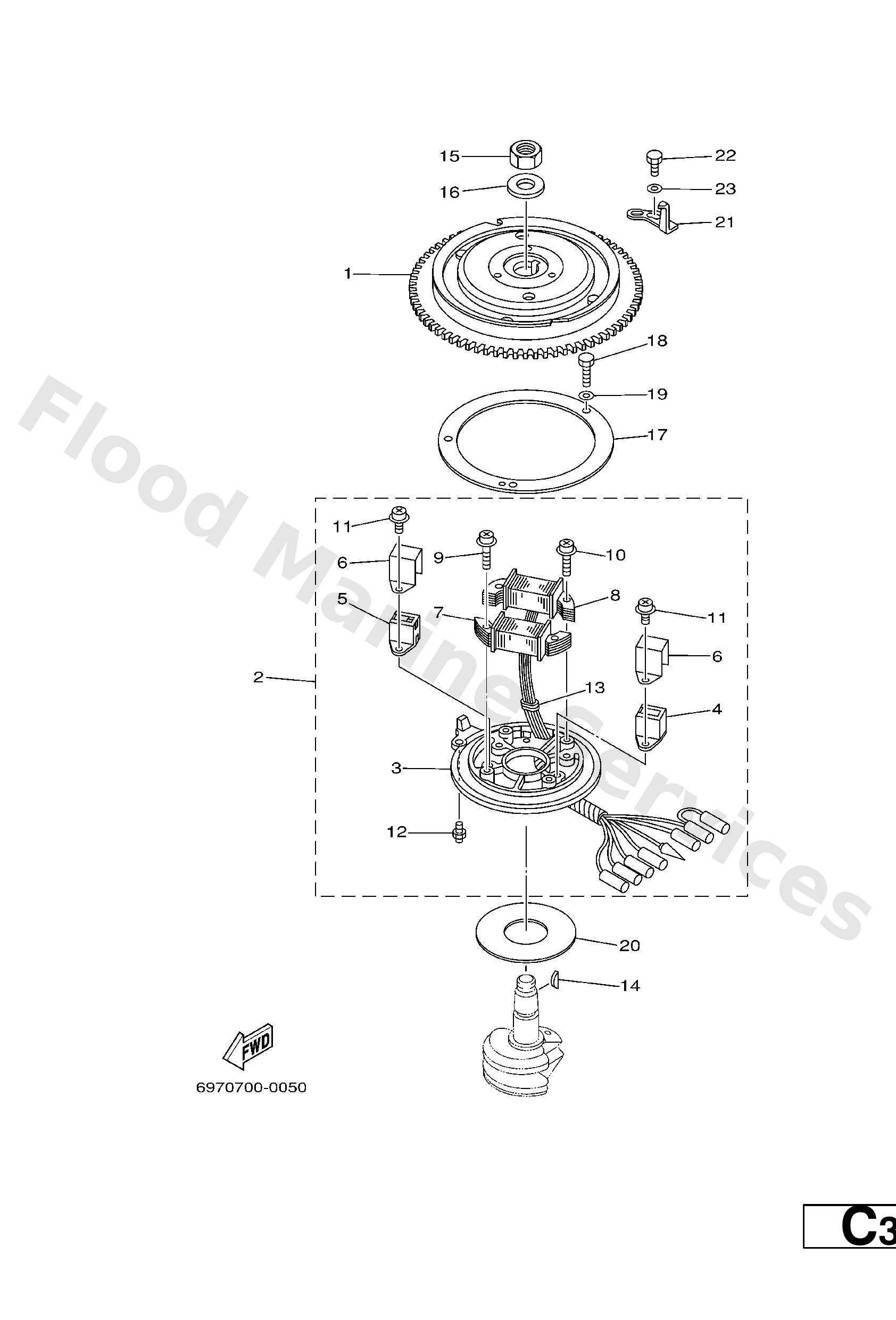

Diagram: GENERATOR 1
Parts List
Reference
Description
Price
1
697−85550−00
Rotor assembly
Loading…
↗
2
697−85560−01
Base assembly
Loading…
↗
3
697−85561−00
Base, magneto
Loading…
↗
4
697−85580−00
Coil, pulser
Loading…
↗
5
697−85580−10
Coil, pulser
Loading…
↗
6
6F0−85599−A0
Cover
Loading…
↗
7
697−85520−02
Coil, charge
Loading…
↗
8
697−85533−00
Coil, lighting
Loading…
↗
9
97602−05130
Screw, Pan Head With Washer
Loading…
↗
10
97602−05132
Screw, pan head with washer
Loading…
↗
11
97602−05114
Screw, pan head with washer
Loading…
↗
12
663−85518−00
Joint, ball
Loading…
↗
13
90480−06158
Grommet (663)
Loading…
↗
14
90280−05015
Key, woodruff
Loading…
↗
15
90170−20137
Nut, hexagon(663)
Loading…
↗
16
90201−21M18
Washer, plate (663)
Loading…
↗
17
663−41612−00
Retainer, magneto base 2
Loading…
↗
18
97013−06020
Bolt(62y)
Loading…
↗
19
92903−06600
Washer, plain (646)
Loading…
↗
20
663−41619−00
Washer, magneto 2
Loading…
↗
21
697−81332−00
Plate, timing
Loading…
↗
22
97095−06016
Bolt, hexagon deep recess
Loading…
↗
23
92995−06600
Washer, plain (646)
Loading…
↗
