250AETOXLX (2001)
Generator

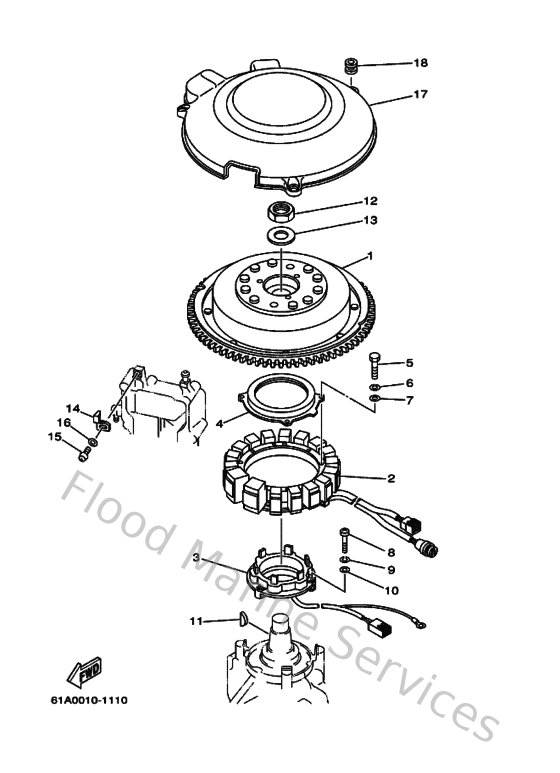

Diagram: Generator
Parts List
Reference
Description
Price
1
61A855500100
Rotor assembly
Loading…
↗
2
65L855101000
Stator assembly
Loading…
↗
3
61A855800100
Coil, pulser
Loading…
↗
4
61A837210000
Cover
Loading…
↗
5
970130603500
Bolt(3rv)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
978850503000
Ybs86-530 screw,panhead
Loading…
↗
9
929900510000
Ybs67-5 washer, spring
Loading…
↗
10
929950560000
Washer, plain (646)
Loading…
↗
11
902800501500
Key, woodruff
Loading…
↗
12
9017024M2200
Nut(61a)
Loading…
↗
13
9020125M0200
Washer, plate(61a)
Loading…
↗
14
6E5813320000
Plate, timing
Loading…
↗
15
978850601000
Screw pan head
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
61A813370100
Cover, flywheel
Loading…
↗
18
663823170100
Damper, ignition coil
Loading…
↗
