5CMH (1997)
Generator

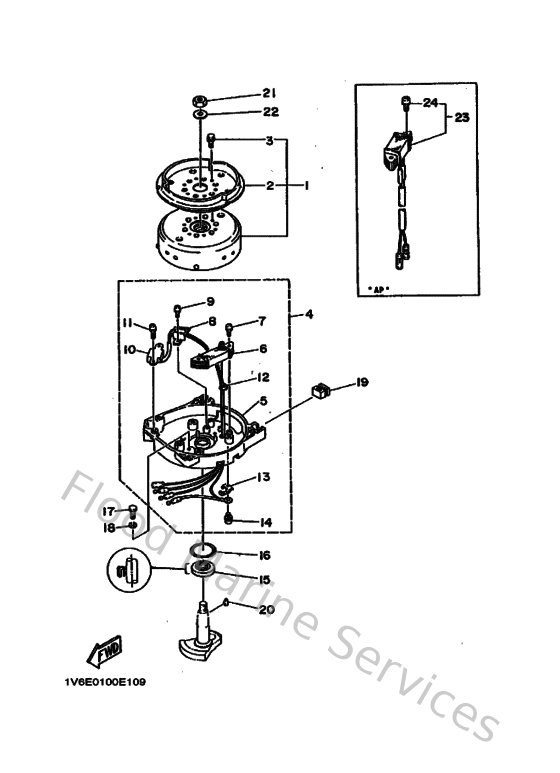

Diagram: Generator
Parts List
Reference
Description
Price
1
6E0855507100
Rotor assembly
Loading…
↗
2
6E0157230094
Pulley, Starter
Loading…
↗
3
9010506M1400
Bolt (6e0)
Loading…
↗
4
6E0855607000
Base assembly
Loading…
↗
5
6E0153590100
Housing, oil seal
Loading…
↗
6
6E0855207000
Charge coil ass'y
Loading…
↗
7
985070501600
Screw, pan head(jj6)
Loading…
↗
8
6E0855957000
Coil pulser assembly 1
Loading…
↗
9
985070401000
Screw, pan head(6g8)
Loading…
↗
10
6E0855927000
Pulser coil assembly 2
Loading…
↗
11
976070521200
Screw,w/washer
Loading…
↗
12
6E0813367000
Grommet
Loading…
↗
13
6E0813287000
Clamp
Loading…
↗
15
9310220M2500
Oil seal (6e0)
Loading…
↗
16
932104215900
O-ring (647)
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929950610000
Washer(6a1)
Loading…
↗
19
6E0241830000
Damper, locating 3
Loading…
↗
20
9028004M0600
Key, woodruff(6a1)
Loading…
↗
21
901701011300
Nut, crank shaft (650)
Loading…
↗
22
90201102G900
Washer, plate (26h)
Loading…
↗
23
6E0813038000
Lighting coil assembly
Loading…
↗
24
901590503900
Screw panhead (695)
Loading…
↗
