F6AMH (2001)
Generator

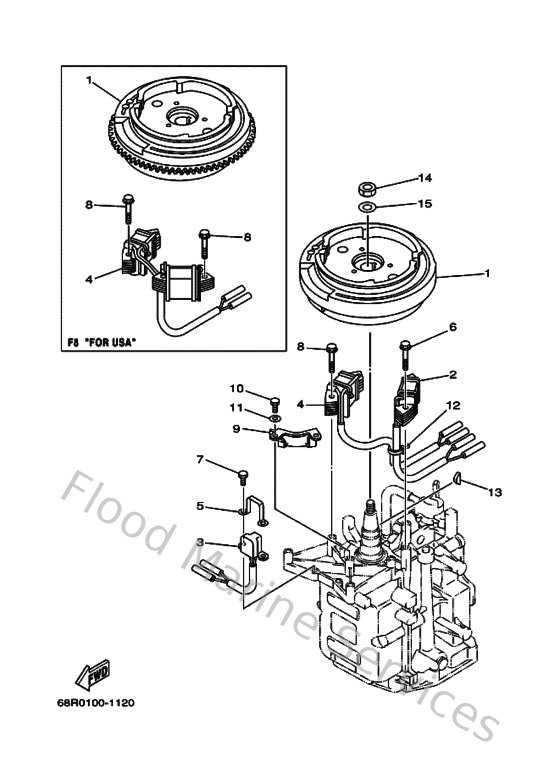

Diagram: Generator
Parts List
Reference
Description
Price
1
68T855500100
Rotor assembly
Loading…
↗
2
68T855200000
Coil, charge
Loading…
↗
3
68T855800100
Coil, pulser
Loading…
↗
4
68T855330000
Coil, lighting
Loading…
↗
5
6H2855820000
Attachment, pulser
Loading…
↗
6
975130652500
Bolt, with washer(61b)
Loading…
↗
7
970950501000
Bolt (682)
Loading…
↗
8
9011906MA100
Bolt, with washer(63m)
Loading…
↗
9
68T813280000
Clamp
Loading…
↗
10
970130601200
Bolt(gh1)
Loading…
↗
11
929030660000
Washer, plain (646)
Loading…
↗
12
904651009800
Clamp
Loading…
↗
13
9028004M0600
Key, woodruff(6a1)
Loading…
↗
14
901701206600
Nut, hexagon 6481155500
Loading…
↗
15
902011247200
Washer, plate (4n0)
Loading…
↗
