L150JETOL (2001)
Generator

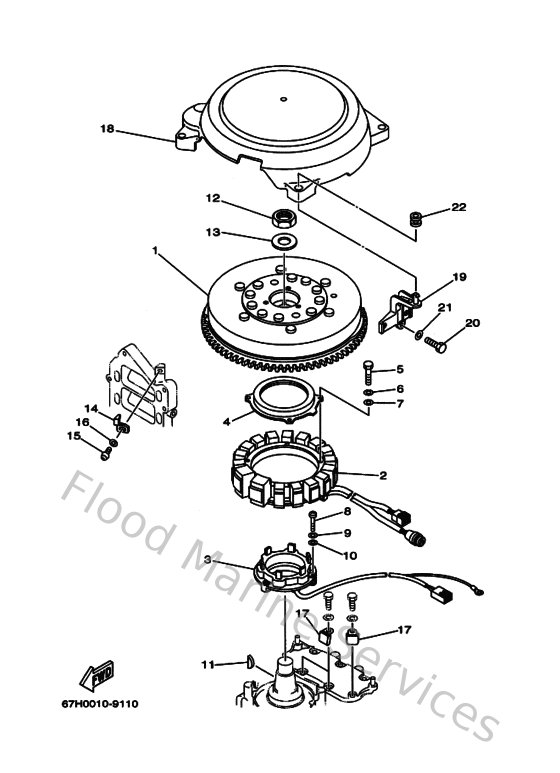

Diagram: Generator
Parts List
Reference
Description
Price
1
67H855500000
Rotor assembly
Loading…
↗
2
61A855100200
Stator assembly
Loading…
↗
3
61A855800100
Coil, pulser
Loading…
↗
4
61A837210000
Cover
Loading…
↗
5
970130603500
Bolt(3rv)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
978850503000
Ybs86-530 screw,panhead
Loading…
↗
9
929950510000
Ybs67-5 washer, spring
Loading…
↗
10
929900560000
Washer, plain (646)
Loading…
↗
11
902800501500
Key, woodruff
Loading…
↗
12
9017024M2200
Nut(61a)
Loading…
↗
13
9020125M0200
Washer, plate(61a)
Loading…
↗
14
6E5813320000
Plate, timing
Loading…
↗
15
978850601000
Screw pan head
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
9046506M8400
Clamp
Loading…
↗
18
67H813370000
Cover, Flywheel
Loading…
↗
19
65L81338001S
Clamp, Lead
Loading…
↗
20
970130602500
Bolt(62y)
Loading…
↗
22
663823170100
Damper, ignition coil
Loading…
↗
