D150HETO (2002)
INTAKE

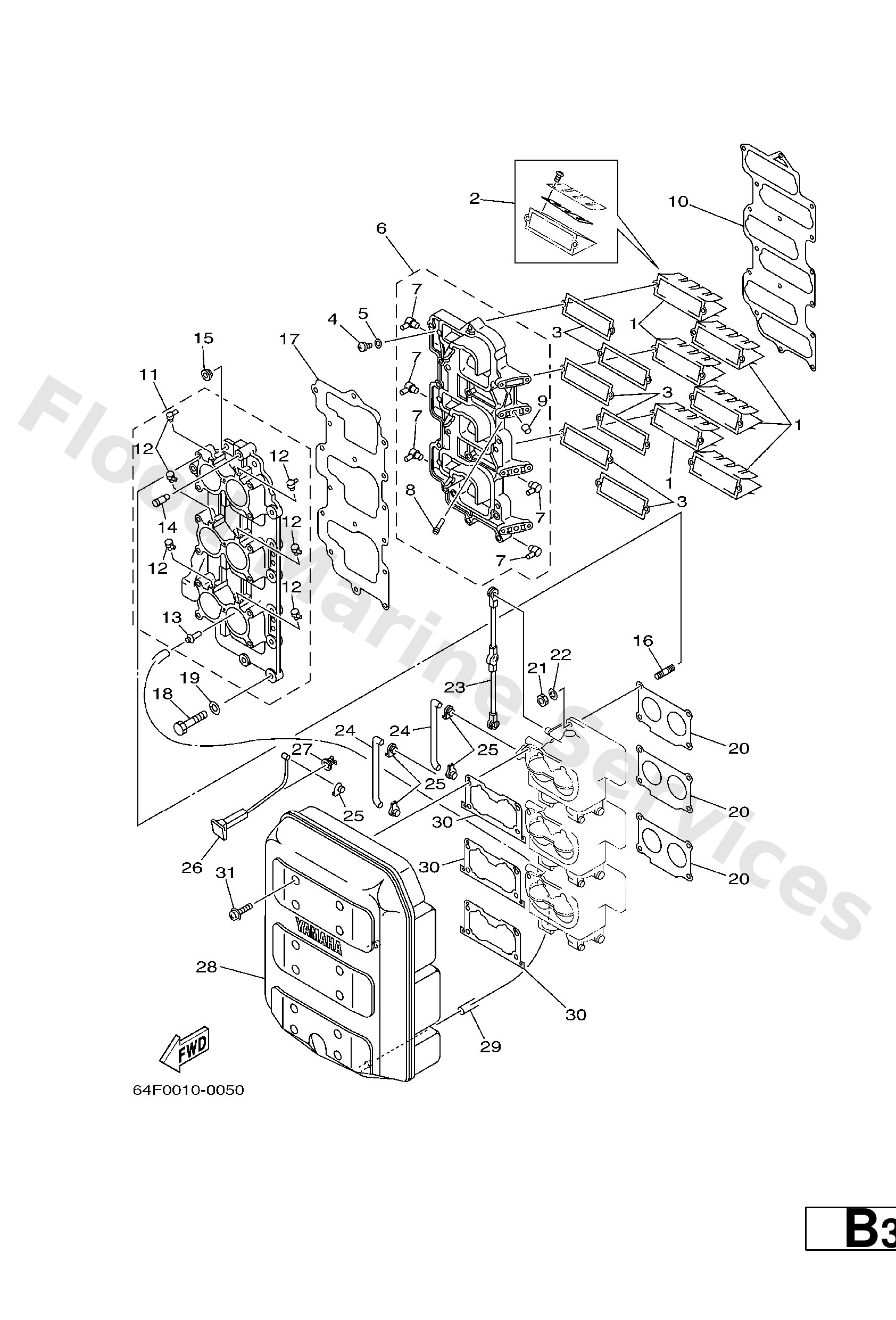

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6K71361000
Reed valve assembly
Loading…
↗
2
6E5W000400
Reed set
Loading…
↗
3
6K713621A1
Gasket, valve seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
64E13624001S
Plate,reed valve
Loading…
↗
7
6881137200
Nipple, hose
Loading…
↗
8
6R51448500
Pipe, joint
Loading…
↗
9
9033608M06
Plug, Taper
Loading…
↗
10
6K713646A2
Gasket, manifold 2
Loading…
↗
11
64E13641001S
Manifold 1
Loading…
↗
12
6E51355200
Nozzle
Loading…
↗
13
6241448500
Pipe, joint
Loading…
↗
14
6K78133801
Stay
Loading…
↗
15
9048010M28
Grommet(6k7)
Loading…
↗
16
9011606M30
Bolt, stud(6e5)
Loading…
↗
17
64E13645A0
Gasket, manifold 1
Loading…
↗
18
9701306050
Bolt, hexagon
Loading…
↗
19
9290306600
Washer, plain (646)
Loading…
↗
20
6E514198A2
Gasket
Loading…
↗
21
9538006600
Nut(661)
Loading…
↗
22
9299506100
Washer(6a1)
Loading…
↗
23
6G54121701
Rod, accel. lever
Loading…
↗
24
6E54125601
Rod, choke 1
Loading…
↗
25
6614126202
Joint, choke lever
Loading…
↗
26
61H4127110
Knob, choke
Loading…
↗
27
6894127300
Grommet
Loading…
↗
28
64D1444000
Silencer assembly, Intake
Loading…
↗
29
9044507MA3
Hose (l200)
Loading…
↗
30
6K71448300
Gasket
Loading…
↗
31
9015906M08
Screw, with washer(6k7)
Loading…
↗
