Yamaha Outboard Parts - Intake - 150AETOL (2000) | Flood Marine

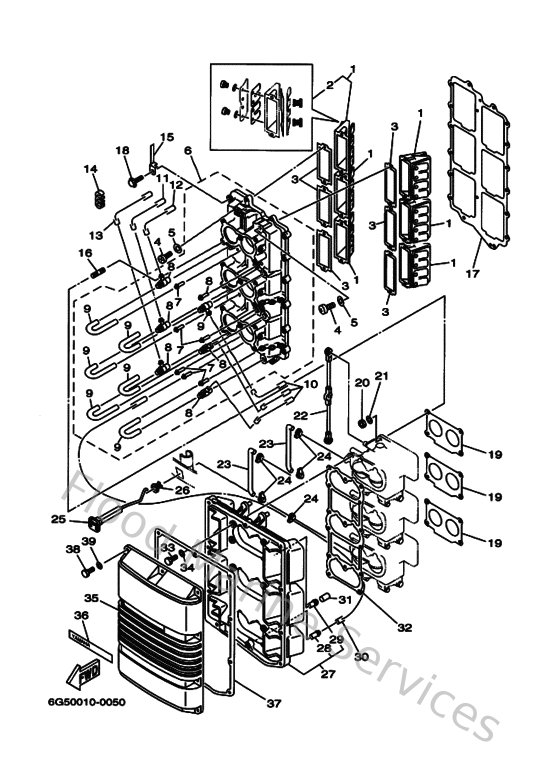

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6G5136100000
Reed valve assembly
Loading…

↗
2
6E5W00040000
Reed set
Loading…

↗
3
6E513621A100
Gasket, valve seat
Loading…

↗
4
978800501600
Screw, pan head(6b0)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
6G513641001S
Manifold 1
Loading…

↗
7
624144850000
Pipe, joint
Loading…

↗
8
6E5113700000
Check valve assembly
Loading…

↗
9
9044507M2800
Hose (l200)
Loading…

↗
10
9044507M9000
Hose (l390)
Loading…

↗
11
9044507M4600
Hose (l390)
Loading…

↗
12
9044507M0900
Hose (l390)
Loading…

↗
13
904450700600
Hose (l770)
Loading…

↗
14
9046407M0500
Clamp (6g5)
Loading…

↗
15
9046510M9100
Clamp
Loading…

↗
16
9011606M3000
Bolt, stud(6e5)
Loading…

↗
17
6G513645A100
Gasket, manifold 1
Loading…

↗
18
9011906MA300
Bolt, with washer
Loading…

↗
19
6E514198A200
Gasket
Loading…

↗
20
953800660000
Nut(661)
Loading…

↗
21
929950610000
Washer(6a1)
Loading…

↗
22
6G5412170100
Rod, accel. lever
Loading…

↗
23
6E5412560100
Rod, choke 1
Loading…

↗
24
661412620200
Joint, choke lever
Loading…

↗
25
6E5412710300
Knob, choke
Loading…

↗
26
689412730000
Grommet
Loading…

↗
27
6G5144171094
Cover
Loading…

↗
29
6E5144850000
Pipe, joint
Loading…

↗
30
9044507MF100
Hose (l570)
Loading…

↗
31
647143956000
Cap,over flow pipe
Loading…

↗
32
6G514483A100
Gasket, plate
Loading…

↗
33
970130602000
Bolt(62y)
Loading…

↗
34
929030660000
Washer, plain (646)
Loading…

↗
35
6G5144180000
Cover 2
Loading…

↗
37
6G514416A100
Gasket, air cleaner
Loading…

↗
38
970950602000
Bolt(7u8)
Loading…

↗
39
929950660000
Washer, plain (646)
Loading…

↗
