25DMH (1998)
Intake

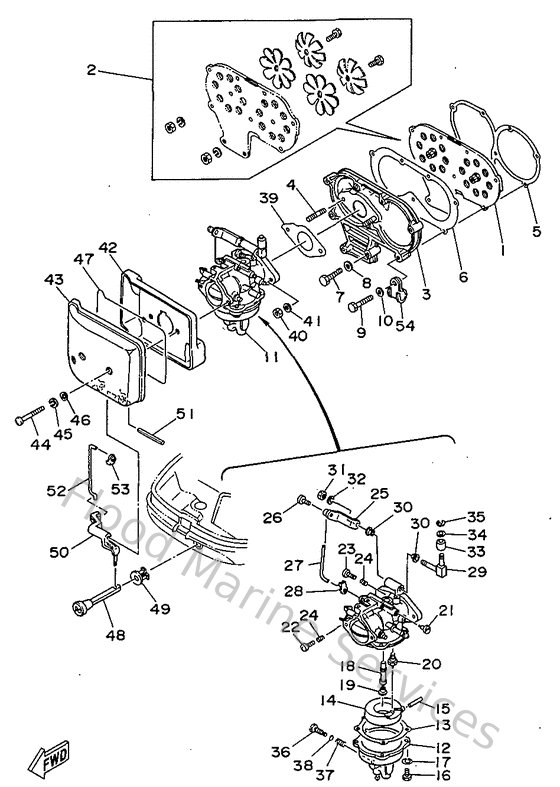

Diagram: Intake
Parts List
Reference
Description
Price
1
689136100100
Reed valve assembly
Loading…
↗
2
689W00040000
Reed set
Loading…
↗
3
648136410194
Manifold, Intake 1
Loading…
↗
4
9011606M3000
Bolt, stud(6e5)
Loading…
↗
5
64813621A100
Gasket, valve seat
Loading…
↗
6
64813645A000
Gasket, manifold 1
Loading…
↗
7
9010106M2700
Bolt
Loading…
↗
8
929030660000
Washer, plain (646)
Loading…
↗
9
973130603500
Bolt(3rv)
Loading…
↗
11
695143010200
Carburetor Assembly 1
Loading…
↗
12
664143810200
Body Float Chamber
Loading…
↗
13
648143840100
Gasket,float chamber
Loading…
↗
14
648143850000
Float
Loading…
↗
15
648143860000
Pin, Float
Loading…
↗
16
985800401200
Screw, pan head (686)
Loading…
↗
17
929900410000
Ybs67-4 washer, spring
Loading…
↗
18
648143410000
Nozzle, Main
Loading…
↗
19
648143437300
Jet, main (#145)
Loading…
↗
20
61K143900000
Valve seat assembly
Loading…
↗
21
648143423000
Jet, Pilot (# 60)
Loading…
↗
22
985800401400
Screw, pan head(ga5)
Loading…
↗
23
647143230000
Screw, air adjusting
Loading…
↗
24
648143340000
Spring, Air Adjusting
Loading…
↗
25
648412100100
Accel. Arm Assembly
Loading…
↗
26
664143270100
Screw
Loading…
↗
27
656412410000
Rod, Link
Loading…
↗
28
661412620200
Joint, choke lever
Loading…
↗
29
648W41210000
Sheave Shaft, Accel Link
Loading…
↗
30
903860500200
Bush 626412910000
Loading…
↗
31
953030570000
Nut (656)
Loading…
↗
32
929900510000
Ybs67-5 washer, spring
Loading…
↗
33
664412310000
Collar Guide Pin (Carb)
Loading…
↗
34
929900520000
Ybs66-5 washer, plain
Loading…
↗
35
934300403100
Circlip(655 carb)
Loading…
↗
36
646143940000
Valve, Drain
Loading…
↗
37
646142230100
Spring Drain Valve (664)
Loading…
↗
38
646143970000
Ring O (664)
Loading…
↗
39
64814198A000
Gasket
Loading…
↗
40
953800660000
Nut(661)
Loading…
↗
41
929900660000
Washer, plain (646)
Loading…
↗
42
695144170000
Cover 1
Loading…
↗
43
695144180100
Cover 2
Loading…
↗
44
978800503000
Ybs86-530 screw,panhead
Loading…
↗
46
929900560000
Washer, plain (646)
Loading…
↗
47
695144760000
O-Ring (689)
Loading…
↗
48
682412710100
Knob, choke
Loading…
↗
49
689412730000
Grommet
Loading…
↗
50
689412520100
Lever, choke 1
Loading…
↗
51
916904004800
Pin, spring (689)
Loading…
↗
52
695412560000
Rod, Choke 1
Loading…
↗
54
904610601500
Clamp (6a4)
Loading…
↗
