25QEO (1990)
Intake

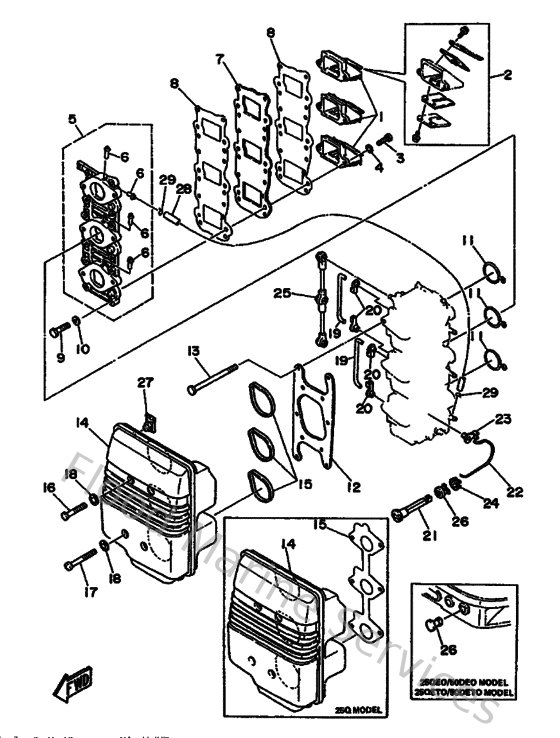

Diagram: Intake
Parts List
Reference
Description
Price
1
6H5136100000
Reed valve assembly
Loading…
↗
2
6H4W00040000
Reed set
Loading…
↗
3
985800501600
Screw, pan head(6b0)
Loading…
↗
4
929900560000
Washer, plain (646)
Loading…
↗
5
6H4136413000
Manifold 1
Loading…
↗
6
6H1144850000
Pipe, joint
Loading…
↗
7
6H4136240100
Plate, reed valve
Loading…
↗
8
6H4136210100
Gasket, valve seat
Loading…
↗
9
973130602000
Bolt(7u8)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
6H4141980100
Gasket
Loading…
↗
12
6H4144060000
Hinge
Loading…
↗
13
973130609500
Bolt, hexagon deep recess
Loading…
↗
14
6H4144310200
Silencer, intake 1
Loading…
↗
15
6H3144570100
Seal
Loading…
↗
16
978950604000
Screw pan head
Loading…
↗
17
985800655500
Screw, panhed (gc2)
Loading…
↗
18
9020906M0500
Washer (688)
Loading…
↗
19
6H4412570000
Rod, choke link 2
Loading…
↗
20
661412620200
Joint, choke lever
Loading…
↗
21
6H4412710200
Knob, choke
Loading…
↗
22
6H4412590100
Rod, choke 3
Loading…
↗
23
6J8412620000
Joint, choke lever
Loading…
↗
24
6J8412740000
Grommet 2
Loading…
↗
25
6H4412170100
Rod, accel. lever
Loading…
↗
26
6G1427480000
Grommet
Loading…
↗
27
9046406M1900
Clamp(6h4)
Loading…
↗
28
9044507M2400
Hose (l390)
Loading…
↗
29
904670601600
Clip (655)
