Yamaha Outboard Parts - Intake - 30AMH (1985) | Flood Marine

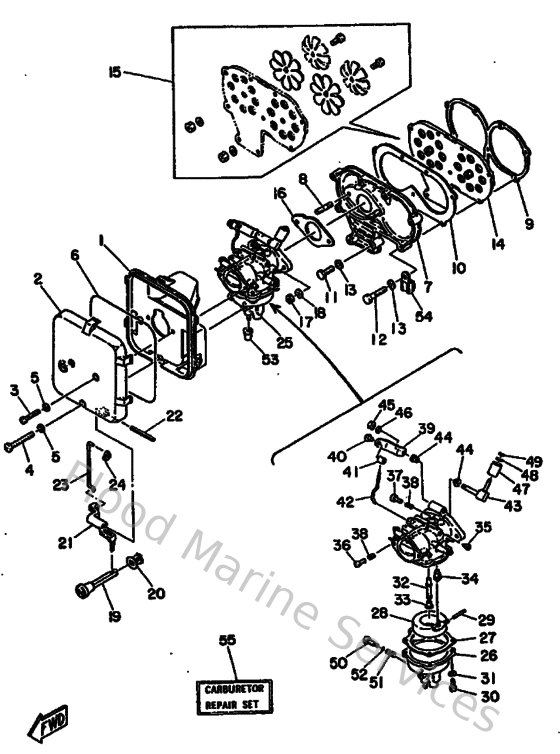

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


3
978030503000
Ybs86-530 screw,panhead
Loading…

↗
4
978030505000
Ybs86-550 screw,panhead
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
9321162M2400
O-Ring (689)
Loading…

↗
7
648136410194
Manifold, Intake 1
Loading…

↗
9
64813621A100
Gasket, valve seat
Loading…

↗
10
648136450000
Gasket, manifold 1
Loading…

↗
11
973130602500
Bolt
Loading…

↗
13
929030660000
Washer, plain (646)
Loading…

↗
14
689136100100
Reed valve assembly
Loading…

↗
15
689W00040000
Reed set
Loading…

↗
16
648141980000
Gasket
Loading…

↗
17
953030660000
Nut(661)
Loading…

↗
19
682412710100
Knob, choke
Loading…

↗
20
689412730000
Grommet
Loading…

↗
21
689412520000
Lever, choke 1
Loading…

↗
22
916904004800
Pin, spring (689)
Loading…

↗
23
689412560000
Rod, Choke 1
Loading…

↗
24
661412620200
Joint, choke lever
Loading…

↗
25
689143018100
Carburetor assembly 1
Loading…

↗
26
689143810100
Body, Float Chamber
Loading…

↗
27
648143840100
Gasket,float chamber
Loading…

↗
28
648143850000
Float
Loading…

↗
29
689143860000
Pin, float
Loading…

↗
30
985030401200
Screw, pan head (686)
Loading…

↗
31
929900410000
Ybs67-4 washer, spring
Loading…

↗
32
689143410000
Nozzle Main
Loading…

↗
33
689143436800
Jet, main (#135)
Loading…

↗
34
648143901400
Needle valve assembly
Loading…

↗
35
689143422700
Jet, Pilot Xx
Loading…

↗
36
648143210000
Screw, pan head(ga5)
Loading…

↗
37
647143230000
Screw, air adjusting
Loading…

↗
38
646142120100
Spring, pilot adjusting
Loading…

↗
39
689412100000
Axle Arm Assembly.carb
Loading…

↗
40
677143270000
Screw
Loading…

↗
41
689412260000
Lever End, Throttle Lever
Loading…

↗
43
689412160000
Sheave Shaft, Acc L
Loading…

↗
44
903860500200
Bush 626412910000
Loading…

↗
45
953030570000
Nut (656)
Loading…

↗
46
929900510000
Ybs67-5 washer, spring
Loading…

↗
47
664412310000
Collar Guide Pin (Carb)
Loading…

↗
48
929900520000
Ybs66-5 washer, plain
Loading…

↗
49
934300403100
Circlip(655 carb)
Loading…

↗
50
646143940000
Valve, Drain
Loading…

↗
51
646142230100
Spring Drain Valve (664)
Loading…

↗
52
646143970000
Ring O (664)
Loading…

↗
53
648143826000
Cap Drain Pipe
Loading…

↗
54
904610601500
Clamp (6a4)
Loading…

↗
55
689W00930000
Carburetor repair kit
Loading…

↗
