Yamaha Outboard Parts - Intake - 30AMH (1992) | Flood Marine

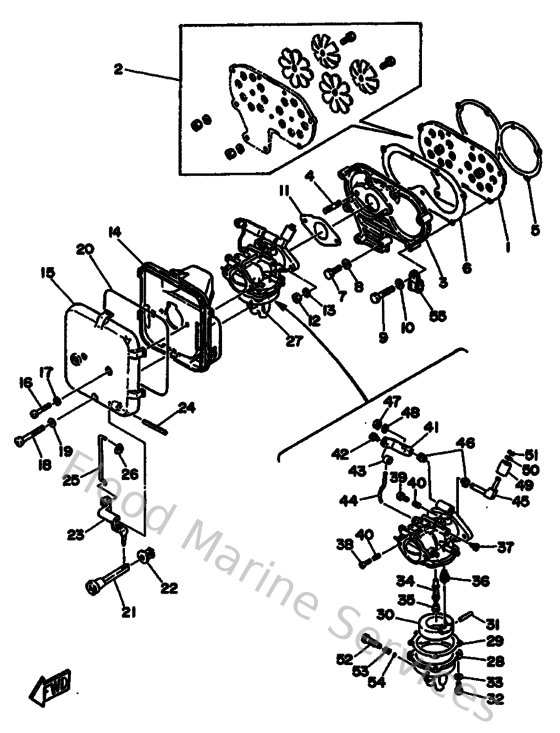

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
689136100100
Reed valve assembly
Loading…

↗
2
689W00040000
Reed set
Loading…

↗
3
648136410194
Manifold, Intake 1
Loading…

↗
4
9011606M3000
Bolt, stud(6e5)
Loading…

↗
5
64813621A000
Gasket, valve seat
Loading…

↗
6
64813645A000
Gasket, manifold 1
Loading…

↗
7
973130602500
Bolt
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
9
970130602500
Bolt(62y)
Loading…

↗
11
64814198A000
Gasket
Loading…

↗
12
953800660000
Nut(661)
Loading…

↗
16
985800553000
Ybs86-530 screw,panhead
Loading…

↗
17
929900560000
Washer, plain (646)
Loading…

↗
18
985800555000
Ybs86-550 screw,panhead
Loading…

↗
20
9321162M2400
O-Ring (689)
Loading…

↗
21
682412710000
Knob, choke
Loading…

↗
22
689412730000
Grommet
Loading…

↗
23
689412520100
Lever, choke 1
Loading…

↗
24
916904004800
Pin, spring (689)
Loading…

↗
25
689412560000
Rod, Choke 1
Loading…

↗
26
661412620200
Joint, choke lever
Loading…

↗
27
689143018100
Carburetor assembly 1
Loading…

↗
28
689143810100
Body, Float Chamber
Loading…

↗
29
648143840100
Gasket,float chamber
Loading…

↗
30
648143850000
Float
Loading…

↗
31
6E5143860100
Pin, float
Loading…

↗
32
985800401200
Screw, pan head (686)
Loading…

↗
33
929900410000
Ybs67-4 washer, spring
Loading…

↗
34
689143410000
Nozzle Main
Loading…

↗
35
689143436800
Jet, main (#135)
Loading…

↗
36
648143901400
Needle valve assembly
Loading…

↗
37
689143422700
Jet, Pilot Xx
Loading…

↗
38
985030401400
Screw, pan head(ga5)
Loading…

↗
39
647143230000
Screw, air adjusting
Loading…

↗
40
646142120100
Spring, pilot adjusting
Loading…

↗
41
689412100000
Axle Arm Assembly.carb
Loading…

↗
42
677143270000
Screw
Loading…

↗
43
689412260000
Lever End, Throttle Lever
Loading…

↗
45
648W41210000
Sheave Shaft, Accel Link
Loading…

↗
46
903860500200
Bush 626412910000
Loading…

↗
47
953030570000
Nut (656)
Loading…

↗
48
929900510000
Ybs67-5 washer, spring
Loading…

↗
49
664412310000
Collar Guide Pin (Carb)
Loading…

↗
50
929900520000
Ybs66-5 washer, plain
Loading…

↗
51
934300403100
Circlip(655 carb)
Loading…

↗
52
646143940000
Valve, Drain
Loading…

↗
53
646142230100
Spring Drain Valve (664)
Loading…

↗
54
646143970000
Ring O (664)
Loading…

↗
55
9046106M0100
Clamp (6a4)
Loading…

↗
