Yamaha Outboard Parts - Intake - 50DEMTO (1993) | Flood Marine

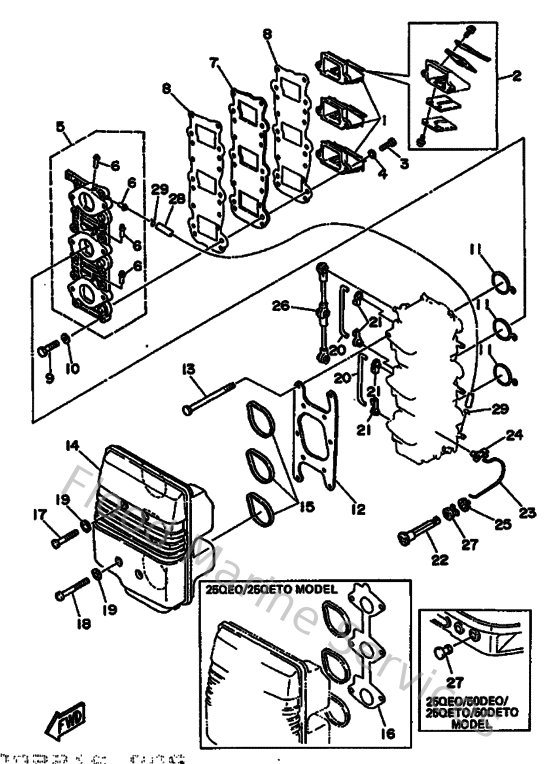

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6H5136100000
Reed valve assembly
Loading…

↗
2
6H4W00040000
Reed set
Loading…

↗
3
985800501600
Screw, pan head(6b0)
Loading…

↗
4
929900560000
Washer, plain (646)
Loading…

↗
5
6H4136413000
Manifold 1
Loading…

↗
6
6H1144850000
Pipe, joint
Loading…

↗
7
6H4136240100
Plate, reed valve
Loading…

↗
8
6H413621A100
Gasket, valve seat
Loading…

↗
9
973130602000
Bolt(7u8)
Loading…

↗
10
929900660000
Washer, plain (646)
Loading…

↗
11
6H4141980100
Gasket
Loading…

↗
12
6H4144060000
Hinge
Loading…

↗
13
973130609500
Bolt, hexagon deep recess
Loading…

↗
14
6H4144310200
Silencer, intake 1
Loading…

↗
15
6H3144570100
Seal
Loading…

↗
17
978950604000
Screw pan head
Loading…

↗
18
985800655500
Screw, panhed (gc2)
Loading…

↗
19
9020906M0500
Washer (688)
Loading…

↗
20
6H4412570000
Rod, choke link 2
Loading…

↗
21
661412620200
Joint, choke lever
Loading…

↗
22
6H4412710200
Knob, choke
Loading…

↗
23
6H4412590100
Rod, choke 3
Loading…

↗
24
6J8412620000
Joint, choke lever
Loading…

↗
25
6J8412740000
Grommet 2
Loading…

↗
26
6H4412170100
Rod, accel. lever
Loading…

↗
27
6G1427480000
Grommet
Loading…

↗
28
9044507M2400
Hose (l390)
Loading…

↗
29
904670601600
Clip (655)
Loading…

↗
