50GETO (1993)
Intake

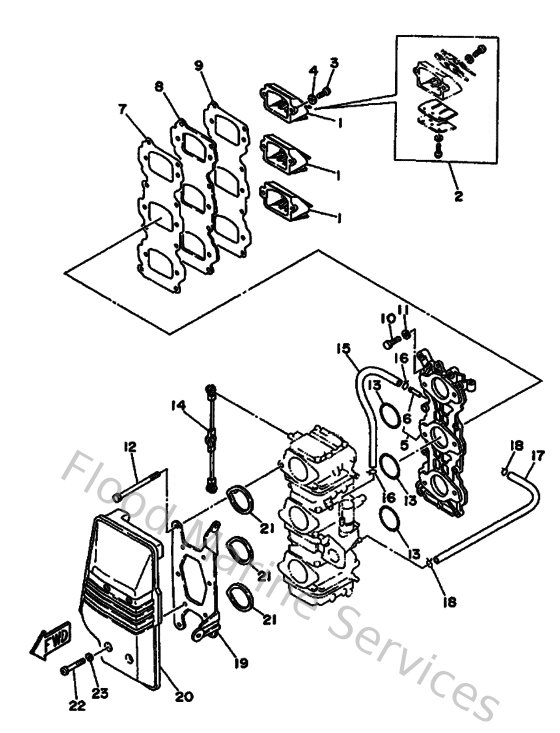

Diagram: Intake
Parts List
Reference
Description
Price
1
6H3136100000
Reed valve assembly
Loading…
↗
2
688W00040000
Reed set
Loading…
↗
3
985800501600
Screw, pan head(6b0)
Loading…
↗
4
929900560000
Washer, plain (646)
Loading…
↗
5
6H3136411394
Manifold, intake 1
Loading…
↗
6
6H1144850000
Pipe, joint
Loading…
↗
7
6H313621A100
Gasket, valve seat
Loading…
↗
8
6H3136240094
Plate, reed valve
Loading…
↗
9
6H313622A100
Gasket, valve seat
Loading…
↗
10
973130602500
Bolt
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
970950609500
Bolt, hexagon deep recess
Loading…
↗
13
9321039ME400
O-ring(6h2)
Loading…
↗
14
6H3412170000
Rod, accel lever
Loading…
↗
15
9044507M0200
Hose (l200)
Loading…
↗
16
904670601600
Clip (655)
Loading…
↗
17
6H3143490000
Pipe
Loading…
↗
18
904670800400
Clip, pipe 6162435600
Loading…
↗
19
6H3144131000
Stay
Loading…
↗
20
6H3144400200
Silencer assembly, intake
Loading…
↗
21
6H3144570100
Seal
Loading…
↗
22
978950604500
Screw, pan head(6b0)
Loading…
↗
23
9020906M0500
Washer (688)
Loading…
↗
