E8DMH (1997)
Intake

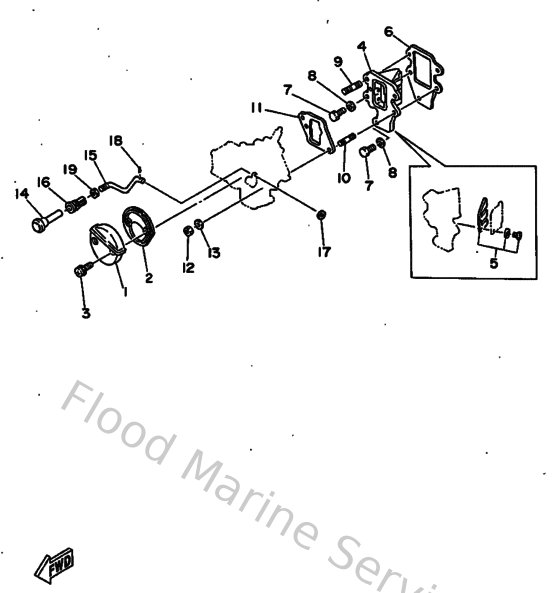

Diagram: Intake
Parts List
Reference
Description
Price
1
677144310000
Silencer 1
Loading…
↗
2
677144410000
Silencer 2
Loading…
↗
4
677136100000
Reed valve assembly
Loading…
↗
5
677W00040000
Reed set
Loading…
↗
6
67713621A000
Gasket, valve seat
Loading…
↗
7
973130601800
Bolt, hexagon
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
956270632500
Bolt, stud(6e0)
Loading…
↗
10
9011606M0400
Bolt, stud (682)
Loading…
↗
11
67714198A000
Gasket
Loading…
↗
12
953800670000
Nut
Loading…
↗
14
677412710000
Knob, choke 1
Loading…
↗
15
677412560000
Rod, choke link 1
Loading…
↗
16
9048014M0200
Grommet 1 (677)
Loading…
↗
17
929900460000
Washer, plain (646)
Loading…
↗
18
904681000400
Clip 626412360000
Loading…
↗
19
953800470000
Nut(6l4)
Loading…
↗
