F40BM (2000)
Intake

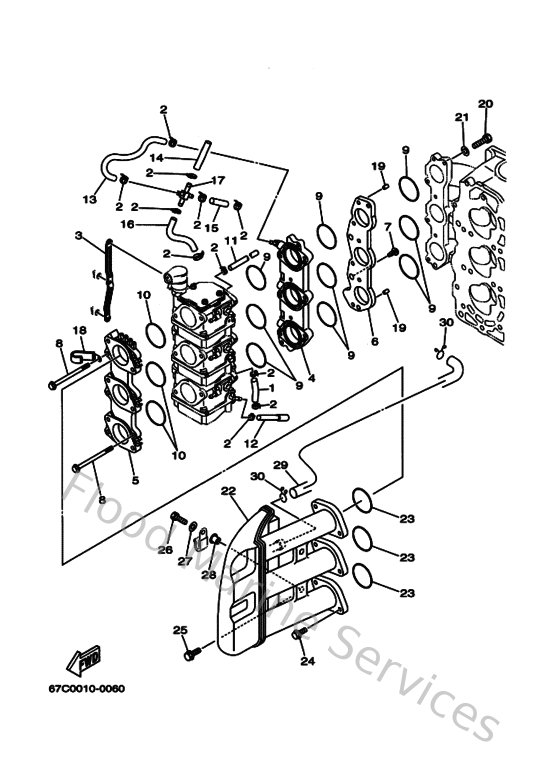

Diagram: Intake
Parts List
Reference
Description
Price
1
9044509M3400
Hose
Loading…
↗
2
9046511M1000
Clamp
Loading…
↗
3
67C145850000
Link, accel.
Loading…
↗
4
67C135890100
Carburetor joint comp.
Loading…
↗
5
67C142430094
Plate
Loading…
↗
6
67C142710000
Insulator
Loading…
↗
7
9033804M1700
Plug(62y)
Loading…
↗
8
975950659000
Bolt(62y)
Loading…
↗
9
67C145610000
O-ring
Loading…
↗
10
67C145620000
O-ring
Loading…
↗
11
67C139710000
Pipe, fuel 1
Loading…
↗
12
67C139720000
Pipe, fuel 2
Loading…
↗
13
67C139730000
Pipe, fuel 3
Loading…
↗
14
67C142940000
Pipe, Fuel 4
Loading…
↗
15
67C139750000
Pipe, fuel 5
Loading…
↗
16
67C139760000
Pipe, fuel 6
Loading…
↗
17
67C143180000
Pipe, joint 4
Loading…
↗
18
67C142550000
Clamp
Loading…
↗
19
9360816M1600
Pin, dowel(6t4)
Loading…
↗
20
970950602500
Bolt
Loading…
↗
21
929950660000
Washer, plain (646)
Loading…
↗
22
67C144400000
Silencer assembly, intake
Loading…
↗
23
9321034MJ600
O-ring
Loading…
↗
24
9011906M8200
Bolt, with washer
Loading…
↗
25
9011906M8600
Bolt, with washer
Loading…
↗
26
970950602000
Bolt(7u8)
Loading…
↗
28
9038706M7000
Collar (6h5)
Loading…
↗
29
67C153730000
Pipe, breather
Loading…
↗
30
9046715M1400
Clip(62y)
Loading…
↗
