Yamaha Outboard Parts - Intake - L150FETOL (2000) | Flood Marine

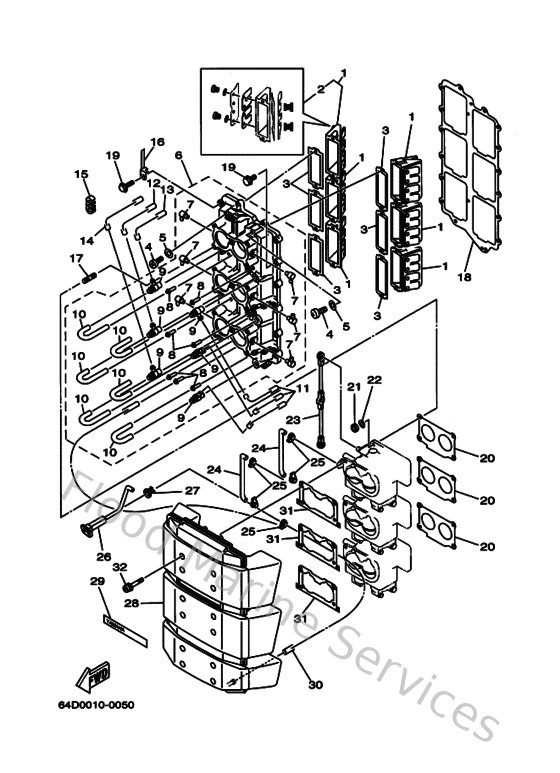

Diagram: Intake

Diagram

Parts List

Reference
Description
Price


1
6E5136100000
Reed valve assembly
Loading…

↗
2
6E5W00040000
Reed set
Loading…

↗
3
6E513621A100
Gasket, valve seat
Loading…

↗
4
978800501600
Screw, pan head(6b0)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
6G513641111S
Manifold 1
Loading…

↗
7
6E5135520000
Nozzle
Loading…

↗
8
624144850000
Pipe, joint
Loading…

↗
9
6E5113700100
Check valve assembly
Loading…

↗
10
9044507M2800
Hose (l200)
Loading…

↗
11
9044507M4500
Hose (l390)
Loading…

↗
12
9044507M9000
Hose (l390)
Loading…

↗
13
9044507M0900
Hose (l390)
Loading…

↗
14
904450700600
Hose (l770)
Loading…

↗
15
9046407M0500
Clamp (6g5)
Loading…

↗
16
9046510M9100
Clamp
Loading…

↗
17
9011606M3000
Bolt, stud(6e5)
Loading…

↗
18
6G513645A200
Gasket, manifold 1
Loading…

↗
19
9011906MA300
Bolt, with washer
Loading…

↗
20
6E514198A200
Gasket
Loading…

↗
21
953800660000
Nut(661)
Loading…

↗
22
929950610000
Washer(6a1)
Loading…

↗
23
6G5412170100
Rod, accel. lever
Loading…

↗
24
6E5412560100
Rod, choke 1
Loading…

↗
25
661412620200
Joint, choke lever
Loading…

↗
26
6R3412710000
Knob, choke
Loading…

↗
27
689412730000
Grommet
Loading…

↗
28
6R3144400200
Silencer assembly, intake
Loading…

↗
30
9044507MA300
Hose (l200)
Loading…

↗
31
6K7144830000
Gasket
Loading…

↗
32
9015906M1400
Screw, with washer(6r3)
Loading…

↗
