115BETO (1995)
Kits De Reparation 1

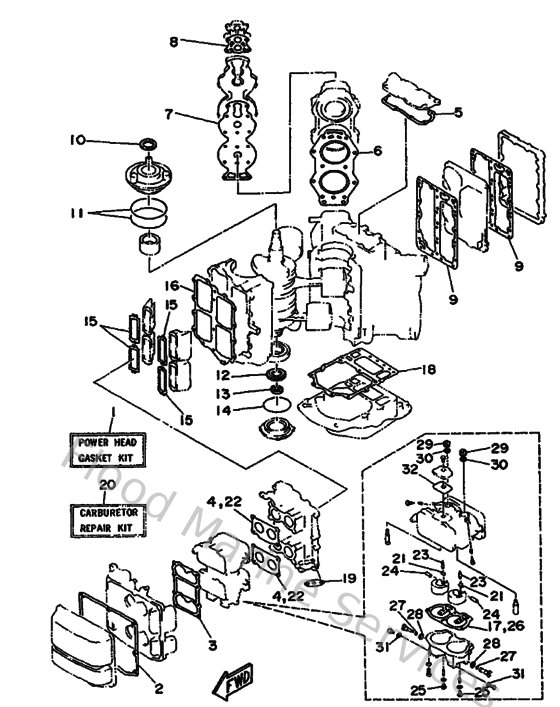

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
6F3W00010400
Gasket kit, power unit
Loading…
↗
2
6E514416A100
Gasket, air cleaner
Loading…
↗
3
6E514483A100
Gasket
Loading…
↗
4
6E514198A100
Gasket
Loading…
↗
5
6E511381A100
Gasket 1
Loading…
↗
6
6E511181A200
Gasket, cylinder head 1
Loading…
↗
7
6E511193A000
Gasket, head cover 1
Loading…
↗
8
68812414A100
Gasket, cover
Loading…
↗
9
6E541112A100
Gasket, exhaust inner cover
Loading…
↗
10
9310240M3800
Oil seal(61a)
Loading…
↗
11
932110438400
O-ring (705)
Loading…
↗
12
9310235M1300
Oil seal (6e5)
Loading…
↗
13
9310122M1500
Oil seal (6e5)
Loading…
↗
14
9321074M3500
O-ring (6e5)
Loading…
↗
15
6E513645A100
Gasket, manifold 1
Loading…
↗
17
6E5143840300
Gasket, float chamber
Loading…
↗
18
6G545113A000
Gasket, upper casing
Loading…
↗
19
65024431A000
Gasket,fuel pump
Loading…
↗
20
6E5W00930600
Carburetor repair kit
Loading…
↗
21
6E5141590000
Clip
Loading…
↗
23
6E5145460000
Valve, needle
Loading…
↗
25
6E5143940000
Valve, Drain
Loading…
↗
27
6E5149970000
O-ring
Loading…
↗
28
6E5143980100
Gasket
Loading…
↗
29
6E5143280100
Plug
Loading…
↗
30
6E5149790000
Gasket
Loading…
↗
31
6J8149950000
Gasket, drin screw
Loading…
↗
32
6E5149590100
Gasket
Loading…
↗
