40VMO (1995)
Kits De Reparation 1

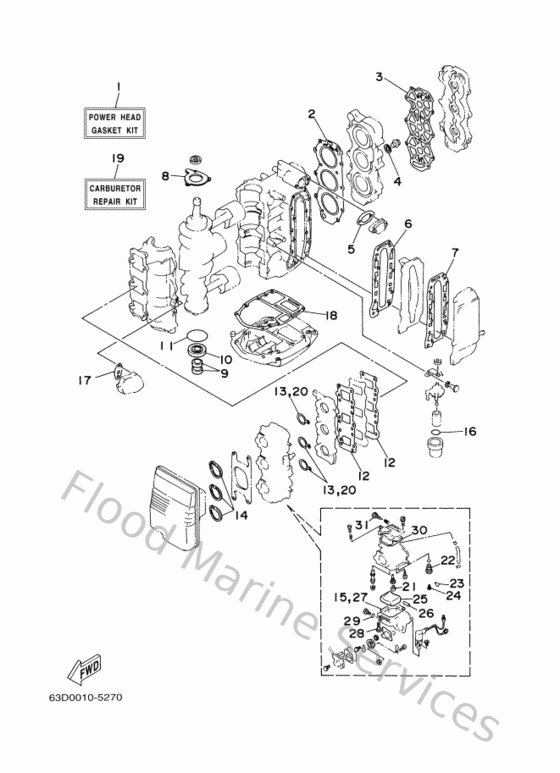

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
63DW00010000
Power head gasket kit
Loading…
↗
3
63D11193A000
Gasket, head cover 1
Loading…
↗
4
904301411500
Gasket (663)
Loading…
↗
5
6J812414A000
Gasket, cover
Loading…
↗
6
6H441112A000
Gasket, exhaust inner cover
Loading…
↗
7
6H441114A000
Gasket, exhaust outer cover
Loading…
↗
8
6H415369A100
Gasket, oil seal housing
Loading…
↗
9
9310116M3600
Oil seal(6a8)
Loading…
↗
10
9310225M2800
Oil seal(6h4)
Loading…
↗
11
9321057M0900
O-ring (683)
Loading…
↗
12
6H413621A100
Gasket, valve seat
Loading…
↗
13
6H4141980100
Gasket
Loading…
↗
14
6H3144570100
Seal
Loading…
↗
15
6H4149840000
Gasket, float chamber
Loading…
↗
16
932103273800
O-ring(1wg)
Loading…
↗
17
65024431A000
Gasket,fuel pump
Loading…
↗
18
6H445113A000
Gasket, upper casing
Loading…
↗
19
6H4W00930300
Carburetor repair kit
Loading…
↗
21
676149660000
Rubber cap
Loading…
↗
22
6H4145900000
Needle valve assembly
Loading…
↗
23
663141590000
Clip
Loading…
↗
24
676141860000
Pin, valve
Loading…
↗
25
6H4149850100
Float
Loading…
↗
26
6H4145480000
Pin, float arm
Loading…
↗
28
979800411400
Screw, pan head(ga5)
Loading…
↗
29
932100423000
O-ring (371)
Loading…
↗
30
6H4141470000
O-ring
Loading…
↗
31
692149230000
Screw, adjusting
Loading…
↗
