E8DMH (1997)
Kits De Reparation 1

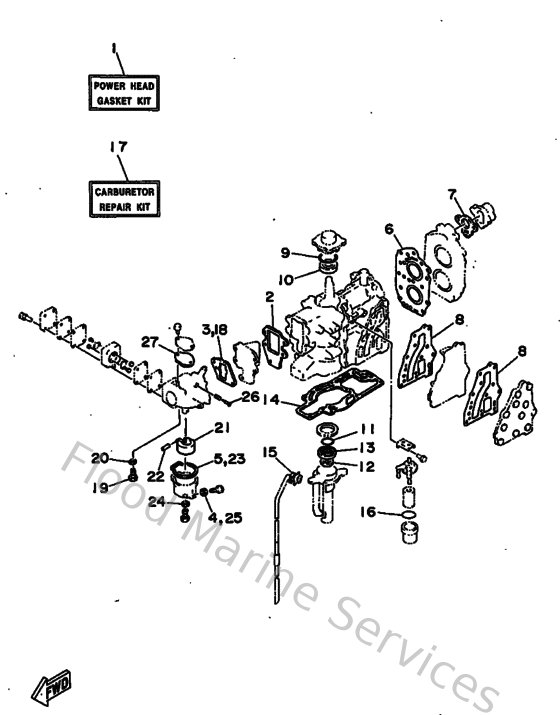

Diagram: Kits De Reparation 1
Parts List
Reference
Description
Price
1
677W0001A200
Power head gasket kit
Loading…
↗
2
677136210000
Gasket, valve seat
Loading…
↗
3
67714198A000
Gasket
Loading…
↗
4
655143980000
Gasket
Loading…
↗
5
677143840100
Gasket, float chamber
Loading…
↗
6
67711181A100
Gasket, cylinder head 1
Loading…
↗
7
67712414A000
Gasket, cover
Loading…
↗
8
67741112A000
Gasket, exhaust inner cover
Loading…
↗
9
932104215900
O-ring (647)
Loading…
↗
10
9310220M2500
Oil seal (6e0)
Loading…
↗
11
9321042M7000
O-ring (677)
Loading…
↗
12
9310114M0100
Oil seal (677)
Loading…
↗
13
9310120M2900
Oil seal(6j1)
Loading…
↗
14
67745113A000
Gasket, upper casing
Loading…
↗
15
655443650000
Damper, water seal 1
Loading…
↗
16
932103273800
O-ring(1wg)
Loading…
↗
17
677W00930600
Carburetor repair set
Loading…
↗
19
6E8143901200
Needle valve assembly
Loading…
↗
20
367141950000
Washer, valve seat
Loading…
↗
21
6E7143850000
Float
Loading…
↗
22
647143861000
Pin, float
Loading…
↗
24
1J2143980000
Packing
Loading…
↗
26
647143230000
Screw, air adjusting
Loading…
↗
27
677142270100
Gasket
Loading…
↗
