Yamaha Outboard Parts - Kits De Reparation 2 - 55BM (1995) | Flood Marine
New Search
Parts
New Outboards
Home
55BM (1995)
Kits De Reparation 2

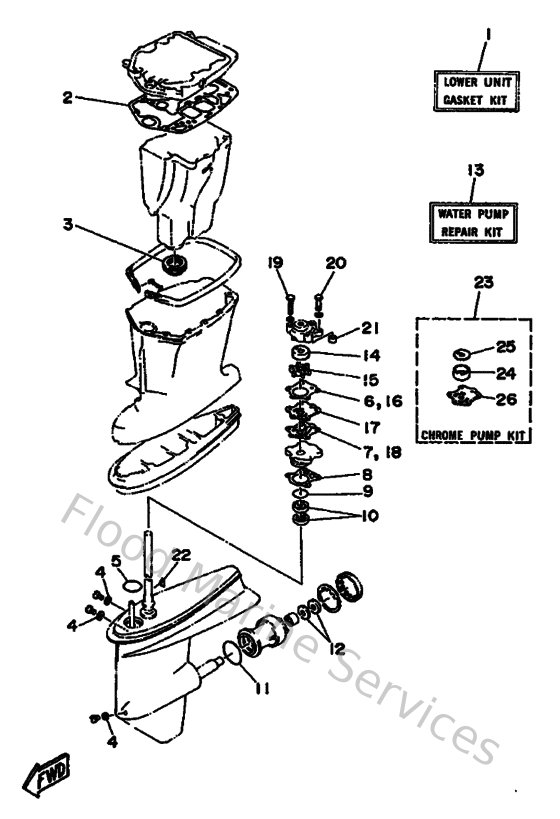

Diagram: Kits De Reparation 2
Parts List
Reference
Description
Price
1
698W00012100
Lower unit gasket kit
Loading…
↗
2
69745114A000
Gasket,upper casing 2
Loading…
↗
3
663451230000
Gasket, muffler
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
932104904600
O-ring (620)
Loading…
↗
6
66344315A000
Gasket,water pump 1
Loading…
↗
7
66344324A000
Gasket,cartridge outer plate
Loading…
↗
8
66344316A000
Gasket,water pump 2
Loading…
↗
9
932104104200
O-ring (132)
Loading…
↗
10
931012307000
Oil seal (663)
Loading…
↗
11
9321066M9800
O-ring(6h4)
Loading…
↗
12
931012206700
Oil seal (22x36x6-663)
Loading…
↗
13
663W00780100
Water pump repair kit
Loading…
↗
14
663443220000
Insert, cartridge
Loading…
↗
15
6H3443520000
Impellar
Loading…
↗
17
663443230000
Outer plate, cartridge
Loading…
↗
19
973950805500
Bolt, hexagon
Loading…
↗
20
970950804500
Bolt, hexagon
Loading…
↗
21
663443660000
Damper, water seal 2
Loading…
↗
22
9028003M0300
Key, woodruff (697)
Loading…
↗
23
6H4W00780A00
Chrome pump kit
Loading…
↗
24
670443220100
Insert, cartridge
Loading…
↗
25
670443210000
Inner plate, cartridge
Loading…
↗
26
670443230000
Outer plate, cartridge
Loading…
↗
