L130BETOL (1996)
Kits De Reparation 2

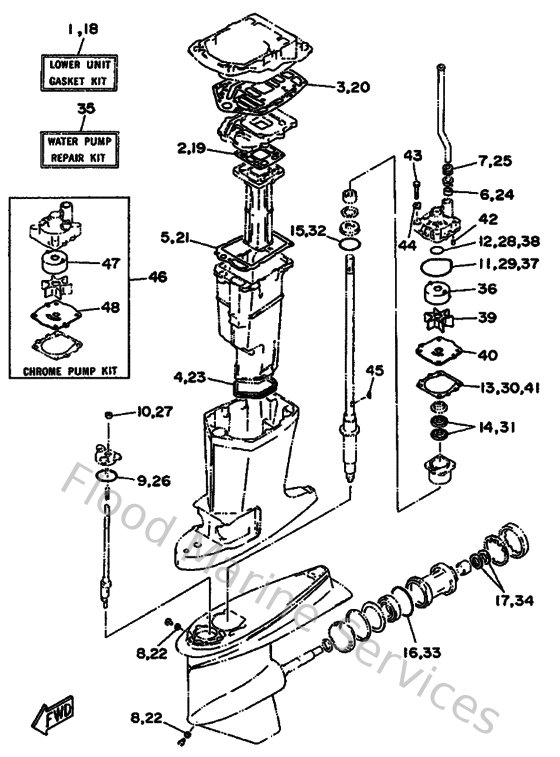

Diagram: Kits De Reparation 2
Parts List
Reference
Description
Price
1
6E5W0001F100
Gasket kit, lower unit
Loading…
↗
2
6E541134A000
Gasket, exhaust manifold
Loading…
↗
3
6G545114A000
Gasket, upper casing
Loading…
↗
4
6E5451230000
Gasket, muffler
Loading…
↗
5
6E541135A000
Gasket, exhaust manifold
Loading…
↗
7
6E5443660000
Damper, water seal 2
Loading…
↗
13
6E544315A000
Gasket,water pump
Loading…
↗
18
6F3W00012100
Gasket kit, lower unit
Loading…
↗
19
6G541134A000
Gasket, exhaust manifold
Loading…
↗
24
6E5443650000
Damper, water seal 1
Loading…
↗
35
6N6W00780000
Water pump repair kit
Loading…
↗
36
61A443220000
Insert, cartridge
Loading…
↗
39
6E5443520100
Impeller
Loading…
↗
40
6E5443230000
Outer plate, cartridge
Loading…
↗
46
6E5W0078A100
Water pump repair kit
Loading…
↗
47
6R3443224000
Insert, cartridge
Loading…
↗
48
6E5443234000
Outer plate, cartridge
Loading…
↗
