LZ300AETO (2007)
LOWER CASING & DRIVE 4

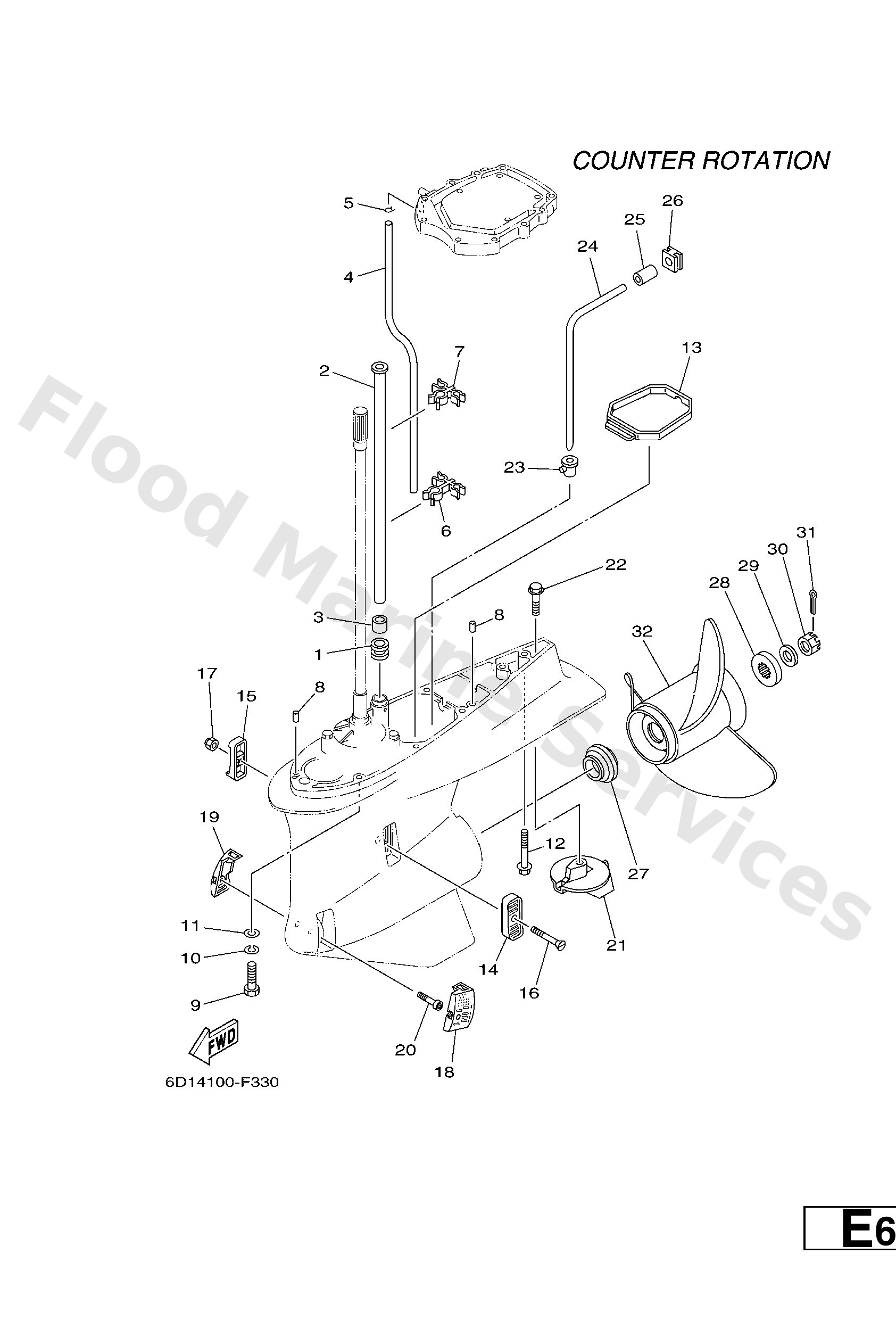

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
61A4436120
X(25.2")
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9044509111
X(25.2")
Hose (l1500)
Loading…
↗
5
9046708M10
Clip, pipe 6162435600
Loading…
↗
6
9046415006
Clamp
Loading…
↗
7
9046415005
Clamp
Loading…
↗
8
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
9709510045
Bolt(64d)
Loading…
↗
10
9299510100
Ybs67-10 washer, spring
Loading…
↗
11
9299510600
Washer, plate
Loading…
↗
12
9011910MA2
Bolt, with washer
Loading…
↗
13
6D04537500
Damper, seal
Loading…
↗
14
6P24521400
Cover, water inlet 1
Loading…
↗
15
6P24521500
Cover, water inlet 2
Loading…
↗
16
9015205M08
Screw, countersunk
Loading…
↗
17
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
18
6P24522400
Cover, water inlet 3
Loading…
↗
19
6P24522500
Cover, water inlet 4
Loading…
↗
20
9011005039
Bolt, hexagon socket head
Loading…
↗
21
69L4537100
Tab-trim
Loading…
↗
22
9010510M00
Bolt, hexagon (663)
Loading…
↗
23
6D04436700
Damper, water seal 3
Loading…
↗
24
6D04436200
Tube, water 2
Loading…
↗
25
6D04436500
Damper, water seal 1
Loading…
↗
26
6D04436600
Damper, water seal 2
Loading…
↗
27
69J4598700
Spacer 1
Loading…
↗
28
6884599701
Spacer 2
Loading…
↗
29
9299018200
Washer (6e5)
Loading…
↗
30
9017118M04
Nut, castle (6e5)
Loading…
↗
31
9149040030
Pin, cotter (663)
Loading…
↗
32
6D14597800
UR
Propeller (3X15-1/2"X17"-Tl)
Loading…
↗
32
6D14597200
UR
Propeller (3X15"X21"-Tl)
Loading…
↗
32
6D14597000
UR
Propeller (3X15-1/4"X19"-Tl)
Loading…
↗
32
6R145978A0
UR
Propeller (3X15–1/4”X17”–Ml)
Loading…
↗
32
6R145976A0
UR
Propeller (3X15–1/4”X15”–Ml)
Loading…
↗
32
6R145974A0
UR
Propeller (3X14–1/2”X23”–Ml)
Loading…
↗
32
6R145972A0
UR
Propeller (3X14–7/8”X21”–Ml)
Loading…
↗
32
6R145970A1
UR
Propeller (3X15-1/4"X19"-Ml)
Loading…
↗
32
61B459780098
UR
Propeller (3x5"x17"-tl)
Loading…
↗
32
61B459740098
UR
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
32
61B459720098
UR
Propeller (ss 3x14-1/2"x21"-tl
Loading…
↗
32
6K1459780298
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
32
6K1459740298
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
32
6K1459720198
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
32
6K1459700198
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
