E15DMH (2003)
LOWER CASING. DRIVE 1

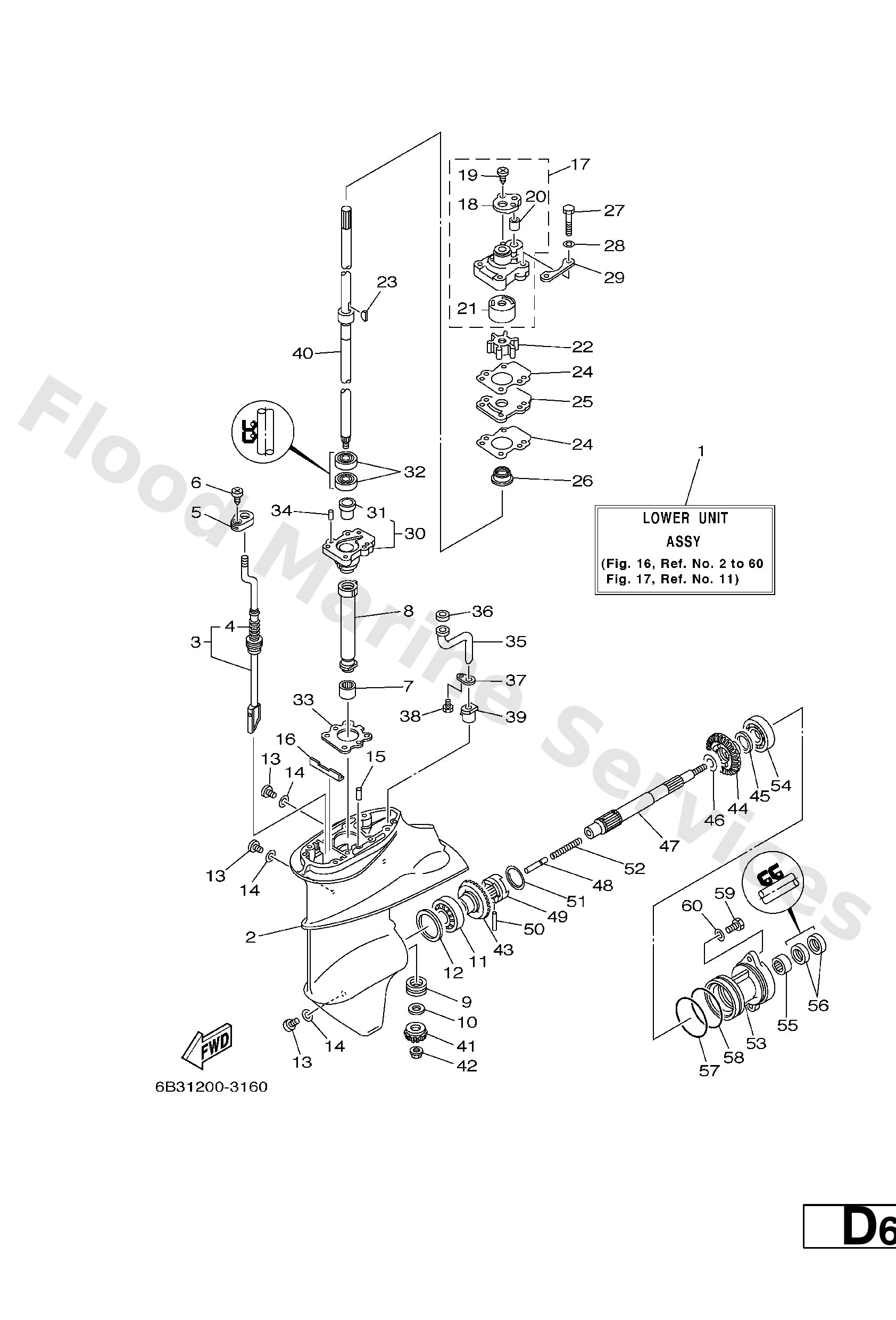

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
6B4−45300−10−4D
L
Lower unit assembly
Loading…
↗
1
6B4−45300−00−4D
S
Lower unit assembly
Loading…
↗
1
6B4−45300−30−4D
X
Lower Unit assembly
Loading…
↗
2
6E8−45311−01−4D
Casing, lower
Loading…
↗
3
6B4−44150−00
S
Shift cam assembly
Loading…
↗
3
6B4−44150−10
L
Shift cam assembly
Loading…
↗
3
6B4−44150−30
X
Shift cam assembly
Loading…
↗
4
6B4−44147−00
Boot, shift rod
Loading…
↗
5
682−44176−00
Bracket
Loading…
↗
6
97780−50110
Screw, tapping(6u1)
Loading…
↗
7
93315−314V8
Bearing, needle (6e7)
Loading…
↗
8
6E7−45536−00
Sleeve, drive shaft
Loading…
↗
9
93341−41414
Bearing
Loading…
↗
10
6E8−45587−10−13
UR
Shim (t:1.13mm)
Loading…
↗
10
6E8−45587−10−20
UR
Shim (t:1.20mm)
Loading…
↗
11
93332−00005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
12
664−45567−01−50
UR
Shim (t:0.50mm)
Loading…
↗
12
664−45567−01−40
UR
Shim (t:0.40mm)
Loading…
↗
12
664−45567−01−30
UR
Shim (t:0.30mm)
Loading…
↗
12
664−45567−01−15
UR
Shim (t:0.15mm)
Loading…
↗
12
664−45567−01−12
UR
Shim (t:0.12mm)
Loading…
↗
12
664−45567−01−10
UR
Shim (t:0.10mm)
Loading…
↗
12
664−45567−01−18
UR
Shim (t:0.18mm)
Loading…
↗
13
90340−08002
Plug, straight screw
Loading…
↗
14
90430−08020
Gasket
Loading…
↗
15
93604−08062
Pin,dowel (626)
Loading…
↗
16
682−45376−01
Guide, seal damper
Loading…
↗
17
682−44300−40
Housing water pump assembly
Loading…
↗
18
682−44312−00
Cover, water pump housing
Loading…
↗
19
97780−40112
Screw, pan head tapping
Loading…
↗
20
682−44365−00
Damper, water seal 1
Loading…
↗
21
682−44322−41
Insert, cartridge
Loading…
↗
22
682−44352−03
Impeller
Loading…
↗
23
90280−03005
Key, woodruff
Loading…
↗
24
682−44315−A0
Gasket,water pump 1
Loading…
↗
25
682−44323−40
Outer plate, cartridge(chrome)
Loading…
↗
26
682−45344−00
Cover, oil seal
Loading…
↗
27
97095−06045
Bolt, hexagon
Loading…
↗
28
92995−06600
Washer, plain (646)
Loading…
↗
29
682−44328−00
Plate
Loading…
↗
30
6E7−45331−00−5B
Housing, bearing
Loading…
↗
31
626−45316−09
Bushing, drive shaft 1
Loading…
↗
32
93101−20001
Oil seal
Loading…
↗
33
683−45315−A0
Packing,lower casing
Loading…
↗
34
93606−12019
Pin, dowel (614)
Loading…
↗
35
683−44362−01
Tube, water 2
Loading…
↗
36
683−44365−01
Damper, water seal 1
Loading…
↗
37
683−44373−00
Set plate, water tube
Loading…
↗
38
97095−06010
Bolt
Loading…
↗
39
6E7−44366−00
Damper, water seal 2
Loading…
↗
40
6B4−45501−00
S
Drive shaft comp.
Loading…
↗
40
6B4−45501−10
L
Drive shaft comp.
Loading…
↗
40
6B4−45501−30
X
Drive shaft comp.
Loading…
↗
41
63V−45551−00
Pinion
Loading…
↗
42
90179−08M06
Nut (6e7)
Loading…
↗
43
6E7−45560−01
Gear
Loading…
↗
44
6E7−45571−00
Gear 2
Loading…
↗
45
626−45577−00−01
UR
Shim (t:0.10mm)
Loading…
↗
45
626−45577−00−05
UR
Shim (t:0.50mm)
Loading…
↗
45
626−45577−00−03
UR
Shim (t:0.30mm)
Loading…
↗
46
90201−17682
Washer, plate (2k7)
Loading…
↗
47
683−45611−00
Shaft propeller
Loading…
↗
48
650−45635−00
Plunger, shift
Loading…
↗
49
682−45631−00
Clutch, dog
Loading…
↗
50
90250−05010
Pin straight 648456320000
Loading…
↗
51
648−45633−00
Ring, cross pin
Loading…
↗
52
90501−14M06
Spring, compression
Loading…
↗
53
683−45361−02−4D
UR
Cap, lower casing
Loading…
↗
53
6B4−45361−00−4D
UR ANTI−CORROSIVE
Cap, Lower Casing
Loading…
↗
54
93306−00501
Bearing(1ff)
Loading…
↗
55
93315−317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
56
93101−17001
Oil seal
Loading…
↗
57
93210−57M09
O-ring (683)
Loading…
↗
58
93210−56M80
O-ring(6j8)
Loading…
↗
59
97095−06020
Bolt(7u8)
Loading…
↗
