E55CMH (2003)
LOWER CASING. DRIVE 3

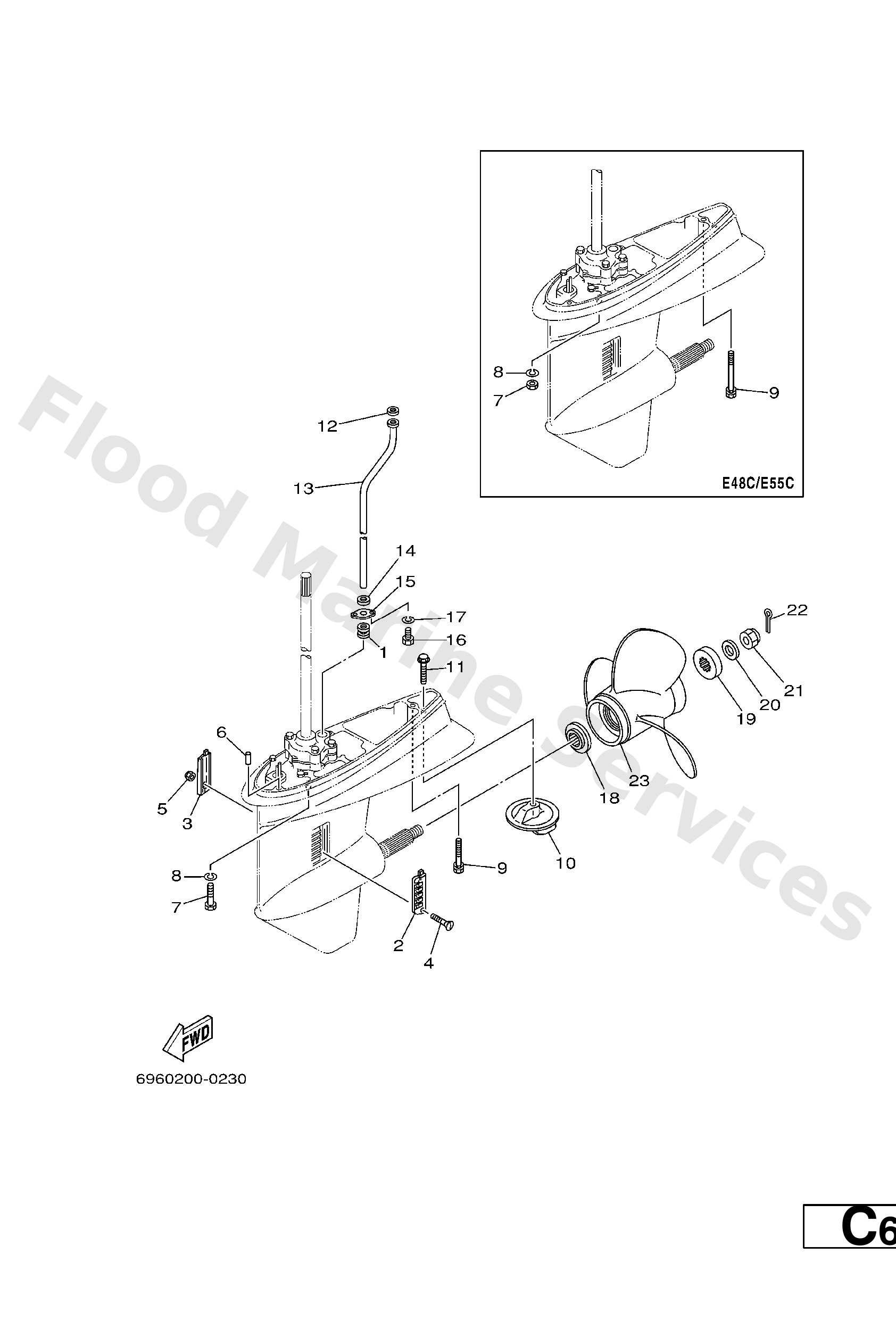

Diagram: LOWER CASING. DRIVE 3
Parts List
Reference
Description
Price
1
663−44367−00
Damper, water seal 3
Loading…
↗
2
688−45214−02
Cover, water inlet
Loading…
↗
3
688−45215−02
Cover, water inlet
Loading…
↗
4
90152−05M05
Screw, countersunk
Loading…
↗
5
90185−05002
Nut nylon (sus)(ex4)
Loading…
↗
6
93606−12019
Pin, dowel (614)
Loading…
↗
7
97075−10040
Bolt, hexagon deep recess
Loading…
↗
7
95380−10600
Nut(624)
Loading…
↗
8
92995−10100
Ybs67-10 washer, spring
Loading…
↗
8
92990−10100
Ybs67-10 washer, spring
Loading…
↗
9
90119−08M85
Bolt, with washer
Loading…
↗
9
90119−08M84
Bolt, with washer
Loading…
↗
10
679−45371−00
Tab trim
Loading…
↗
11
90105−10M67
Bolt, hexagon (663)
Loading…
↗
12
90202−12060
Washer, plate(663)
Loading…
↗
13
663−44361−00
S
Tube, water
Loading…
↗
13
670−44361−00
S
Tube, water
Loading…
↗
13
663−44361−10
L
Tube, water
Loading…
↗
13
670−44361−10
L
Tube,water
Loading…
↗
14
90430−12072
Gasket
Loading…
↗
15
663−44373−00
Set plate, water tube
Loading…
↗
16
97095−06012
Bolt(gh1)
Loading…
↗
17
92995−06100
Washer(6a1)
Loading…
↗
18
663−45987−02
Spacer
Loading…
↗
19
670−45997−02
Spacer
Loading…
↗
20
92990−16200
958-58204-00 washer,plain
Loading…
↗
21
90171−16011
Nut, castle (663)
Loading…
↗
22
91490−40025
Pin, cotter (663)
Loading…
↗
