2BMH (1987)
Lower & Drive

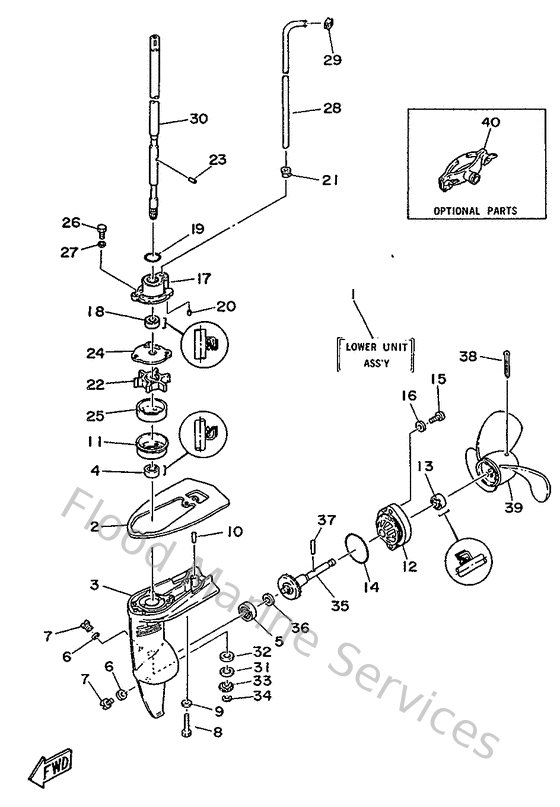

Diagram: Lower & Drive
Parts List
Reference
Description
Price
4
931031105100
Oil seal (11x21x8-646)
Loading…
↗
5
933060000100
Brg,r-b 6000 26mm 19g ky
Loading…
↗
6
904300802000
Gasket
Loading…
↗
7
903400801400
Plug, straight screw
Loading…
↗
8
970800603000
Bolt(jf7)
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
936051506500
Pin, dowel
Loading…
↗
11
6A1443250000
Protector, oil seal
Loading…
↗
12
6A14536101EJ
Cap, lower casing
Loading…
↗
13
931031005200
Oil seal (10x21x10-646)
Loading…
↗
14
932104210100
O-ring (183)
Loading…
↗
15
973900601400
Bolt(gj3)
Loading…
↗
17
999990212900
Cover, water pump h0using
Loading…
↗
19
932101912300
O-ring (646)
Loading…
↗
20
936040906800
Pin,dowel (646)
Loading…
↗
21
646443660100
Damper, water seal 2
Loading…
↗
22
646443520100
Impeller
Loading…
↗
23
936040906600
Pin, dowel
Loading…
↗
24
646443230000
Outer plate,cartridge
Loading…
↗
25
646443220000
Insert, cartridge
Loading…
↗
26
973900501600
Bolt, with washer
Loading…
↗
27
929900560000
Washer, plain (646)
Loading…
↗
28
6A1443610000
Tube, water
Loading…
↗
29
646443650000
Damper, water seal 1
Loading…
↗
30
6A1455100100
Drive shaft assembly
Loading…
↗
31
9020111M4900
Washer, plate (6e0)
Loading…
↗
33
646455510000
Pinion
Loading…
↗
34
990010660000
Circlip(53l)
Loading…
↗
35
646455600000
Gear
Loading…
↗
36
646455672000
Shim (t:0.50mm)
Loading…
↗
37
902500300200
Pin, straight(6a1)
Loading…
↗
38
914903004500
Pin, cotter (am5)
Loading…
↗
39
6464594200EL
Propeller (3x7-1/4 x5-1/2 -a)
Loading…
↗
