140AETOL (1996)
Lower & Drive 1

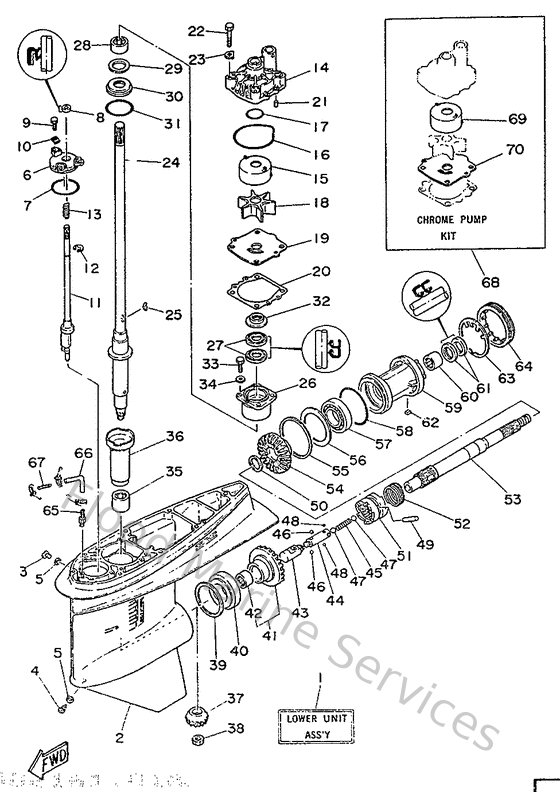

Diagram: Lower & Drive 1
Parts List
Reference
Description
Price
1
61U4530013EJ
Lower Unit assembly
Loading…
↗
2
6E54530105EJ
Casing, Lower
Loading…
↗
4
688453410000
Plug, drain
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
6E5453210000
Plate
Loading…
↗
7
932105867700
O-ring(47x)
Loading…
↗
8
931060901400
Oil seal
Loading…
↗
9
973950602000
Bolt(7u8)
Loading…
↗
10
9020906M0400
Washer
Loading…
↗
11
6E5441500200
Shift cam assembly
Loading…
↗
12
934300800600
Circlip(2r6)
Loading…
↗
13
9050111M1000
Spring, compression (663)
Loading…
↗
14
6E5443110000
Housing, water pump
Loading…
↗
15
6E5443220000
Insert, cartridge
Loading…
↗
16
9321086M3800
O-ring (6e5)
Loading…
↗
17
932103716000
O-ring (6g8)
Loading…
↗
18
6E5443520000
Impeller
Loading…
↗
19
6E5443230000
Outer plate, cartridge
Loading…
↗
20
6E544315A000
Gasket,water pump
Loading…
↗
21
936061201900
Pin, dowel (614)
Loading…
↗
22
973950804500
Bolt, hexagon
Loading…
↗
23
9020908M0200
Washer, plate (688)
Loading…
↗
24
6E5455010100
Drive shaft comp.
Loading…
↗
25
9028004M0500
Key, woodruff (6e5)
Loading…
↗
26
6E5453310094
Housing, bearing
Loading…
↗
27
9310128M1600
Oil seal (6e5)
Loading…
↗
28
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
29
6E5455876000
Shim (t:0.50mm)
Loading…
↗
31
9321055M1400
O-ring (70e)
Loading…
↗
32
6E5453440000
Cover, oil seal
Loading…
↗
33
970950802500
Bolt (62g)
Loading…
↗
34
929900860000
Washer, plain (663)
Loading…
↗
35
93315628U900
Brg,cyl-cal roller (6e5)
Loading…
↗
36
6E5455360000
Sleeve, drive shaft
Loading…
↗
37
6E5455510200
Pinion
Loading…
↗
38
9017016M0100
Nut, hexagon (688)
Loading…
↗
39
6E5455676000
Shim (t:0.50mm)
Loading…
↗
40
93332000U700
Brg,tapered roller 76mm (6e5)
Loading…
↗
41
6E5455600100
Gear 1 assembly
Loading…
↗
42
93315425U700
Brg,cyl-cal roller (6e5)
Loading…
↗
44
6E5456340100
Slide, shift
Loading…
↗
45
9050116M3700
Spring (6g5)
Loading…
↗
46
935073203100
Ball (12r)
Loading…
↗
47
935113201700
Ball (498)
Loading…
↗
48
935031600300
Ball
Loading…
↗
49
9025008M0700
Pin, straight (6g5)
Loading…
↗
50
9020130M9200
Washer (6g5)
Loading…
↗
51
6E5456310100
Clutch, dog
Loading…
↗
52
6E5456330100
Ring, cross pin
Loading…
↗
53
6E5456110100
Shaft, propeller
Loading…
↗
54
6E5455710100
Gear 2
Loading…
↗
55
6E5455770012
Shim (t:0.12mm)
Loading…
↗
56
6E5455760000
Washer, thrust 2
Loading…
↗
57
93306208U000
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
58
9321086M3900
O-ring (6e5)
Loading…
↗
59
6E5453320094
Housing, bearing
Loading…
↗
60
93315430U800
Bearing
Loading…
↗
61
9310130M1700
Oil seal (6e5)
Loading…
↗
62
902820401000
Key, strait(663)
Loading…
↗
63
688453830100
Washer, claw
Loading…
↗
64
688453840000
Nut
Loading…
↗
65
6E5453780000
Nipple, hose
Loading…
↗
66
9044507ME900
Hose (l250)
Loading…
↗
67
6E5835581000
End, nipple
Loading…
↗
68
6E5W00780A00
Water Pump Repair Kit
Loading…
↗
69
6E5443224100
Insert, Cartridge
Loading…
↗
70
6E5443234000
Outer plate, cartridge
Loading…
↗
