55BM (1997)
Lower Casing & Drive

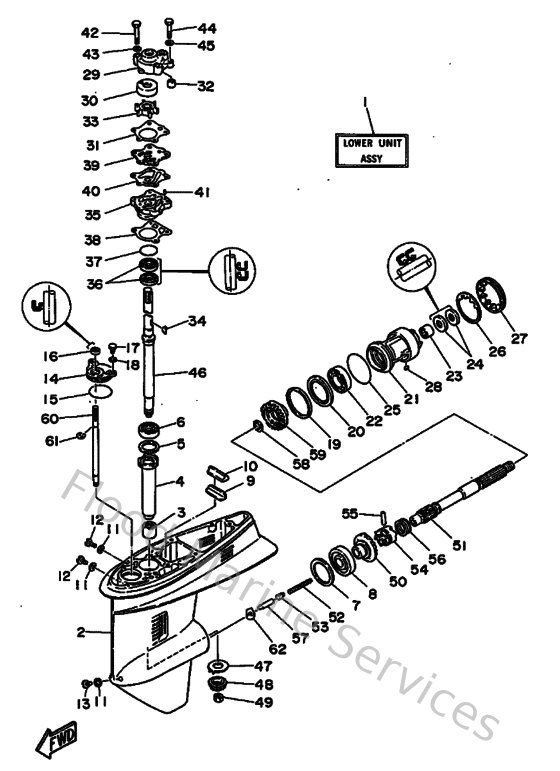

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
69745300014D
Lower unit assembly
Loading…
↗
2
69745311024D
Casing, lower
Loading…
↗
3
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…
↗
4
663455360000
Sleeve, drive shaft
Loading…
↗
5
663455870130
Shim (t:0,30mm)
Loading…
↗
6
933320000100
Brg, tapered roller (409)
Loading…
↗
7
663455676000
Shim (t:0.50mm)
Loading…
↗
8
933320000300
Brg,cyl-cal roller 318g ky
Loading…
↗
9
663453760094
Guide, seal damper
Loading…
↗
10
663453750000
Rubber, seal 2
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
903400800200
Plug, straight screw
Loading…
↗
13
688453410000
Plug, drain
Loading…
↗
14
663453210000
Plate
Loading…
↗
15
932104904600
O-ring (620)
Loading…
↗
16
931060901400
Oil seal
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
663455776000
Shim (t:0.50mm)
Loading…
↗
20
663455760000
Washer, thrust 2
Loading…
↗
21
663453310094
Housing, bearing
Loading…
↗
22
933060070200
Brg,r-b 6007 62mm 150g ky
Loading…
↗
23
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
24
931012206700
Oil seal (22x36x6-663)
Loading…
↗
25
9321066M9800
O-ring(6h4)
Loading…
↗
26
9021448M0300
Washer, claw(697)
Loading…
↗
27
697453840000
Nut
Loading…
↗
28
902820401000
Key, strait(663)
Loading…
↗
29
663443110200
Housing, water pump
Loading…
↗
30
663443220000
Insert, cartridge
Loading…
↗
31
66344315A000
Gasket,water pump 1
Loading…
↗
32
663443660000
Damper, water seal 2
Loading…
↗
33
697443520000
Impellar
Loading…
↗
34
9028003M0300
Key, woodruff (697)
Loading…
↗
35
663443410094
Housing, water pump
Loading…
↗
36
931012307000
Oil seal (663)
Loading…
↗
37
932104104200
O-ring (132)
Loading…
↗
38
66344316A000
Gasket,water pump 2
Loading…
↗
39
663443230000
Outer plate, cartridge
Loading…
↗
40
66344324A000
Gasket,cartridge outer plate
Loading…
↗
41
936040806200
Pin,dowel (626)
Loading…
↗
42
970950805500
Bolt, hexagon
Loading…
↗
43
929900860000
Washer, plain (663)
Loading…
↗
44
970950804500
Bolt, hexagon
Loading…
↗
46
663455100100
Drive shaft assembly
Loading…
↗
47
663455520000
Bearing, plain
Loading…
↗
48
697455510000
Pinion
Loading…
↗
49
901701213800
Nut hexagon(663)
Loading…
↗
50
697455600000
Gear 1 assembly
Loading…
↗
51
697456110000
Shaft, propeller
Loading…
↗
52
905011623300
Spring compression(663)
Loading…
↗
53
663456340000
Slide, shift
Loading…
↗
55
902500602300
Pin, strait (663)
Loading…
↗
56
663456330000
Ring, cross pin
Loading…
↗
57
688456350000
Plunger, shift
Loading…
↗
58
902012242900
Washer, plate(663)
Loading…
↗
59
697455710000
Gear 2
Loading…
↗
60
663441440100
Rod, shift 2
Loading…
↗
61
990010860000
Circlip(2r6)
Loading…
↗
62
663441510000
Cam, shift
Loading…
↗
1
688452140200
Cover, water inlet
Loading…
↗
2
688452150200
Cover, water inlet
Loading…
↗
3
987800554000
Ybs53-540 screw,flat head
Loading…
↗
4
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
9011908M8400
Bolt, with washer
Loading…
↗
9
679453710000
Tab trim
Loading…
↗
10
9010510M0000
Bolt, hexagon (663)
Loading…
↗
11
697436620000
Guide, reverse rod
Loading…
↗
12
902021206000
Washer, plate(663)
Loading…
↗
13
663443610000
Tube, water
Loading…
↗
14
904301207200
Gasket
Loading…
↗
15
663443730000
Set plate, water tube
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
17
929950610000
Washer(6a1)
Loading…
↗
18
663443670000
Damper, water seal 3
Loading…
↗
19
663459870200
Spacer
Loading…
↗
20
670459970200
Spacer
Loading…
↗
21
929901620000
958-58204-00 washer,plain
Loading…
↗
22
901711601100
Nut, castle (663)
Loading…
↗
23
914904003000
Pin, cotter (663)
Loading…
↗
24
663459490100
Propeller (3x10-3/4"x16"-g)
Loading…
↗
