F40BM (2000)
Lower Casing & Drive 1

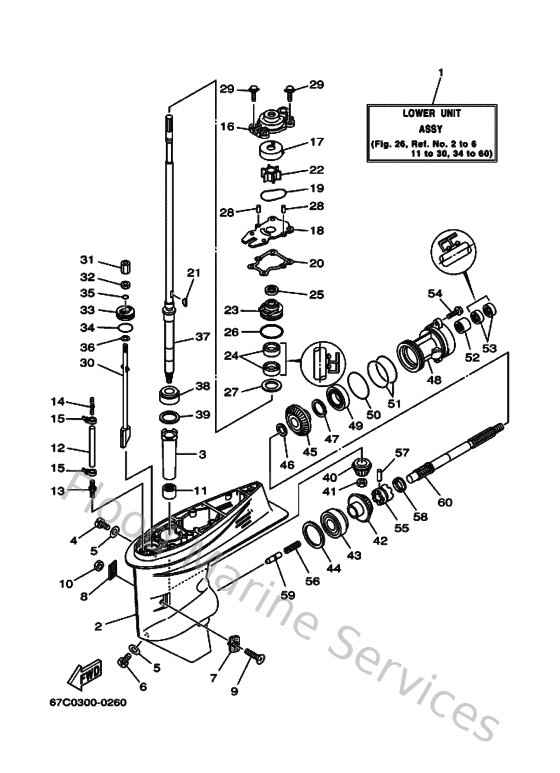

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
67C45300004D
Lower unit assembly
Loading…
↗
2
67C45301008D
Casing, lower
Loading…
↗
3
6H4455360000
Sleeve, drive shaft
Loading…
↗
4
9034008M0400
Plug, straight screw
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
688453410000
Plug, drain
Loading…
↗
7
63D452140000
Cover, water inlet
Loading…
↗
8
63D452150000
Cover, water inlet
Loading…
↗
9
9014205M0600
Screw, countersunk
Loading…
↗
10
953800560000
Nut, hexagon (663)
Loading…
↗
11
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…
↗
12
9044507ME800
Hose (l250)
Loading…
↗
13
6E5453780000
Nipple, hose
Loading…
↗
14
6E5835580000
End, nipple
Loading…
↗
15
9046511M1000
Clamp
Loading…
↗
16
66T443110000
Housing, water pump
Loading…
↗
17
63D443220000
Insert, cartridge
Loading…
↗
18
66T443230000
Outer plate, cartridge
Loading…
↗
19
9321059MG700
O-ring
Loading…
↗
20
63D443160000
Gasket, water pump
Loading…
↗
21
9028003M0700
Key, woodruff (697)
Loading…
↗
22
6H4443520200
Impeller
Loading…
↗
23
63D443410000
Housing, water pump set
Loading…
↗
24
9310122M6000
Oil seal
Loading…
↗
25
66T453440100
Cover, oil seal
Loading…
↗
26
9321048MG800
O-ring
Loading…
↗
27
9020127M0000
Washer, plate(62x)
Loading…
↗
28
936040806200
Pin,dowel (626)
Loading…
↗
29
9011908M1500
Bolt, with washer(62w)
Loading…
↗
30
67C441501000
Shift cam assembly
Loading…
↗
31
67C441460000
Connector, shift rod
Loading…
↗
32
9538R0670000
Nut
Loading…
↗
33
66T453210000
Plate
Loading…
↗
34
9321033MG400
O-ring
Loading…
↗
35
9321006ME600
O-ring
Loading…
↗
36
929900660000
Washer, plain (646)
Loading…
↗
37
67C455010000
Drive shaft comp.
Loading…
↗
38
933320000100
Brg, tapered roller (409)
Loading…
↗
39
663455876000
Shim (t:0.50mm)
Loading…
↗
40
66T455510000
Pinion
Loading…
↗
41
901701213800
Nut hexagon(663)
Loading…
↗
42
66T455600100
Gear
Loading…
↗
43
933320000300
Brg,cyl-cal roller 318g ky
Loading…
↗
44
663455676000
Shim (t:0.50mm)
Loading…
↗
45
66T455710000
Gear
Loading…
↗
46
902012242900
Washer, plate(663)
Loading…
↗
47
63D455776000
Shim (t:0.50mm)
Loading…
↗
48
63D45361024D
Cap, lower casing
Loading…
↗
49
93306001U100
Bearing(62x)
Loading…
↗
50
9321069MG600
O-ring
Loading…
↗
51
932107477500
O-ring (xea)
Loading…
↗
52
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
53
9310122M0000
Oil seal (22x36x6-663)
Loading…
↗
54
9010508M6100
Bolt, washer based(62x)
Loading…
↗
55
66T456310000
Clutch, dog
Loading…
↗
56
9050118M0100
Spring, compression
Loading…
↗
57
902500602300
Pin, strait (663)
Loading…
↗
58
67C456330000
Ring, cross pin
Loading…
↗
59
66T456350000
Plunger, shift
Loading…
↗
60
66T456110000
Shaft, propeller
Loading…
↗
