40QMH (1992)
Lower Casing & Drive 2

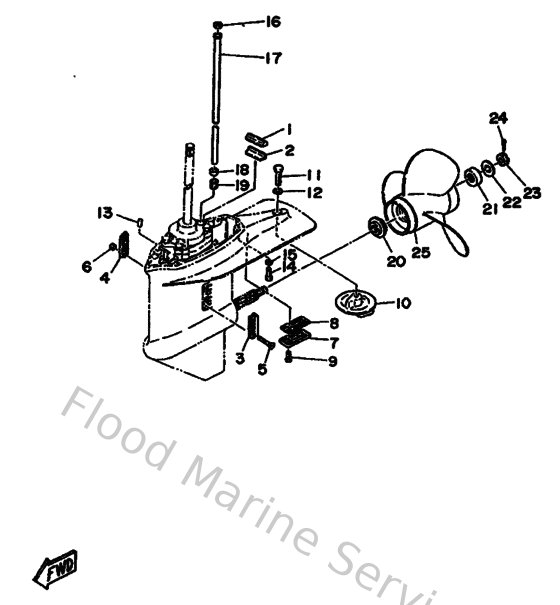

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
663453750000
Rubber, seal 2
Loading…
↗
2
663453760094
Guide, seal damper
Loading…
↗
4
688452150200
Cover, water inlet
Loading…
↗
5
987800553500
Srcrew flat head (e03)
Loading…
↗
6
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
7
679453210100
Plate
Loading…
↗
8
67945315A000
Packing Lower Casing
Loading…
↗
9
985800601600
Screw pan head
Loading…
↗
10
679453710000
Tab trim
Loading…
↗
11
973951003000
Bolt, hexagon
Loading…
↗
12
929901010000
Ybs67-10 washer, spring
Loading…
↗
13
936061201900
Pin, dowel (614)
Loading…
↗
14
973950803000
Bolt, hexagon (fj1)
Loading…
↗
15
929900810000
Ybs67-8 washer, spring
Loading…
↗
16
902021206000
Washer, plate(663)
Loading…
↗
17
676443610000
Tube, water 1
Loading…
↗
18
904301207200
Gasket
Loading…
↗
19
663443670000
Damper, water seal 3
Loading…
↗
20
663459870200
Spacer
Loading…
↗
21
670459970200
Spacer
Loading…
↗
22
929901620000
958-58204-00 washer,plain
Loading…
↗
23
901711601100
Nut, castle (663)
Loading…
↗
24
914903003000
Pin, cotter
Loading…
↗
25
69W459470000
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
