40QMH (1993)
Lower Casing & Drive 2

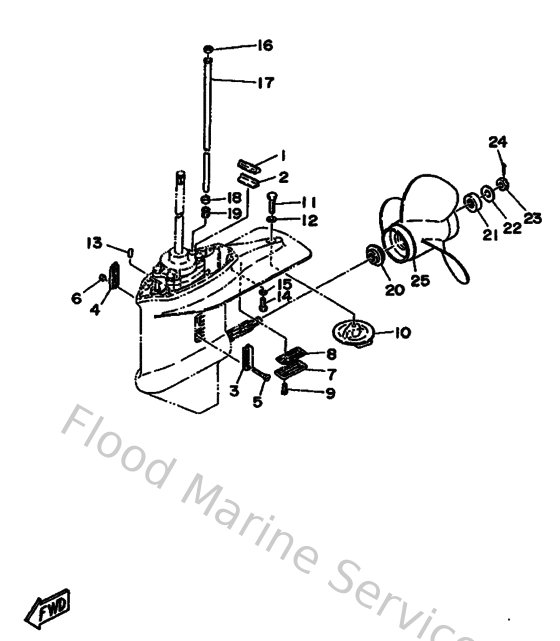

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
663453750000
Rubber, seal 2
Loading…
↗
2
663453760094
Guide, seal damper
Loading…
↗
3
688452140200
Cover, water inlet
Loading…
↗
4
688452150200
Cover, water inlet
Loading…
↗
5
986800553500
Srcrew flat head (e03)
Loading…
↗
6
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
7
679453210100
Plate
Loading…
↗
9
925800601600
Screw pan head
Loading…
↗
10
679453710000
Tab trim
Loading…
↗
11
970951003000
Bolt, hexagon
Loading…
↗
12
929901010000
Ybs67-10 washer, spring
Loading…
↗
14
973950803000
Bolt, hexagon (fj1)
Loading…
↗
15
929900810000
Ybs67-8 washer, spring
Loading…
↗
16
902021206000
Washer, plate(663)
Loading…
↗
17
676443610000
Tube, water 1
Loading…
↗
18
904301207200
Gasket
Loading…
↗
19
663443670000
Damper, water seal 3
Loading…
↗
20
663459870200
Spacer
Loading…
↗
21
670459970200
Spacer
Loading…
↗
22
929901620000
958-58204-00 washer,plain
Loading…
↗
23
901711601100
Nut, castle (663)
Loading…
↗
24
914903003000
Pin, cotter
Loading…
↗
25
6634595202EL
Propeller (3x11-3/8x12-g)
Loading…
↗
