60FETO (1998)
Lower Casing & Drive 2

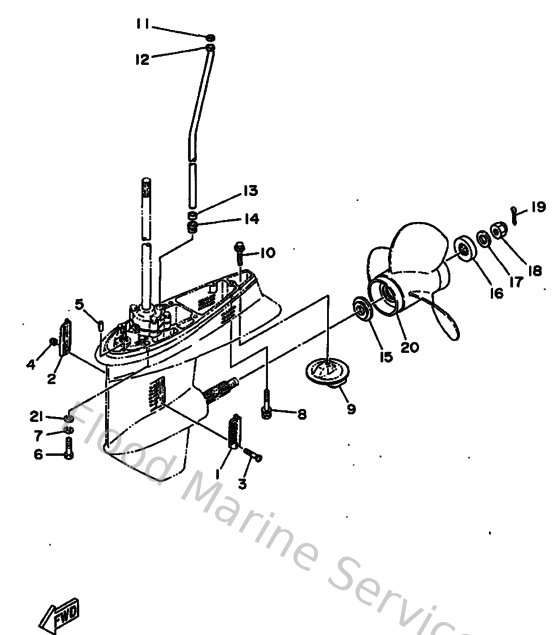

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
688452140200
Cover, water inlet
Loading…
↗
2
688452150200
Cover, water inlet
Loading…
↗
3
987800554000
Ybs53-540 screw,flat head
Loading…
↗
4
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
9011908M8400
Bolt, with washer
Loading…
↗
9
679453710000
Tab trim
Loading…
↗
10
9010510M6700
Bolt, hexagon (663)
Loading…
↗
11
902021206000
Washer, plate(663)
Loading…
↗
12
6H3443611000
Tube, water
Loading…
↗
13
904301207200
Gasket
Loading…
↗
14
663443670000
Damper, water seal 3
Loading…
↗
15
663459870200
Spacer
Loading…
↗
16
670459970200
Spacer
Loading…
↗
17
929901620000
958-58204-00 washer,plain
Loading…
↗
18
901711601100
Nut, castle (663)
Loading…
↗
19
914904003000
Pin, cotter (663)
Loading…
↗
20
663459706000
Propeller (3x11-3/4"x12"-g)
Loading…
↗
21
929901060000
Washer, plate
Loading…
↗
1
663453760094
Guide, seal damper
Loading…
↗
2
688453750000
Damper, seal 2
Loading…
↗
3
688453710200
Tab-trim
Loading…
↗
4
9010510M0000
Bolt, hexagon (663)
Loading…
↗
10
6H3443610000
Tube, water
Loading…
↗
14
663443660000
Damper, water seal 2
Loading…
↗
15
9044507M1000
Hose (L770)
Loading…
↗
16
6E5835580000
End, nipple
Loading…
↗
17
688459870100
Spacer
Loading…
↗
18
688459970100
Spacer 2
Loading…
↗
19
9020117M0000
Washer, plate(6h1)
Loading…
↗
22
6E5459490000
Propeller (3x13-5/8"x13"-k)
Loading…
↗
23
6E5459781000
Propeller assembly (3x14"x26"-p)
Loading…
↗
24
6E5459941000
Plate, tooth
Loading…
↗
25
6E5453711000
Tab-trim
Loading…
↗
