F40AET (1999)
Lower Casing & Drive 2

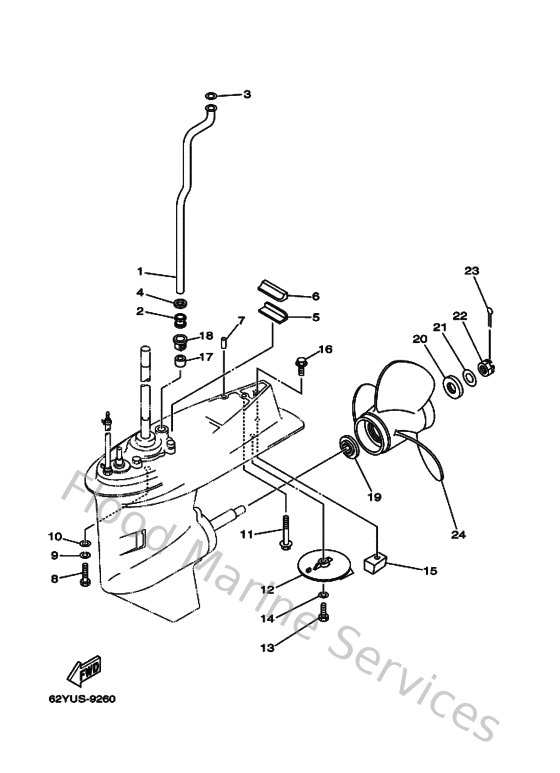

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
62Y443610000
Tube, water
Loading…
↗
2
663443670000
Damper, water seal 3
Loading…
↗
3
902021206000
Washer, plate(663)
Loading…
↗
4
904301207200
Gasket
Loading…
↗
5
663453760094
Guide, seal damper
Loading…
↗
6
63D453750000
Damper, seal
Loading…
↗
7
936061201900
Pin, dowel (614)
Loading…
↗
8
970751004000
Bolt, hexagon deep recess
Loading…
↗
9
929951010000
Ybs67-10 washer, spring
Loading…
↗
10
929901060000
Washer, plate
Loading…
↗
11
9011908M8400
Bolt, with washer
Loading…
↗
12
664453710100
Tab-trim
Loading…
↗
13
970950802500
Bolt (62g)
Loading…
↗
14
929900810000
Ybs67-8 washer, spring
Loading…
↗
15
63D452511000
Anode
Loading…
↗
16
975950843000
Bolt, With Washer
Loading…
↗
17
663443660000
Damper, water seal 2
Loading…
↗
18
63D443120000
Cover, water pump housing
Loading…
↗
19
663459870200
Spacer
Loading…
↗
20
670459970200
Spacer
Loading…
↗
21
929901620000
958-58204-00 washer,plain
Loading…
↗
22
901711601100
Nut, castle (663)
Loading…
↗
23
914903002500
Pin cotter
Loading…
↗
24
663459760098
Propeller (3x10-1/4"x15"-g)
Loading…
↗
