F6AMH (2001)
Lower Casing & Drive 2

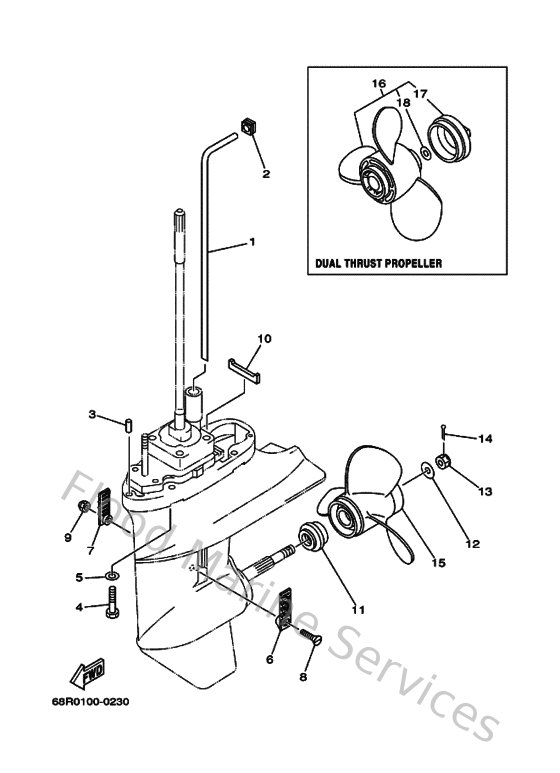

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
68T443610000
Tube, water 1
Loading…
↗
2
63V443651000
Damper, water seal 1
Loading…
↗
3
9360412M0700
Pin, dowel (688)
Loading…
↗
4
970750803500
Bolt(70w)
Loading…
↗
5
929900860000
Washer, plain (663)
Loading…
↗
6
6G1452140000
Cover, water inlet
Loading…
↗
7
6G1452150000
Cover, water inlet
Loading…
↗
8
9015205M0300
Screw, countersunk
Loading…
↗
9
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
10
63V453750000
Damper, seal
Loading…
↗
11
6G1459870200
Spacer
Loading…
↗
12
9020110M0100
Washer, plate(6m7)
Loading…
↗
13
9017110M0100
Nut castle (683)
Loading…
↗
14
914903002000
Pin cotter
Loading…
↗
15
6G1459520000
Propeller (3x8-1/2 x8 -n)
Loading…
↗
16
6G1W45920000
Propeller (3x9 x5 -n)
Loading…
↗
17
6G1456160100
Nut, propeller
Loading…
↗
18
9020110M0200
Washer, plate(6g9)
Loading…
↗
