F8BMH (1986)
Lower Casing & Drive 2

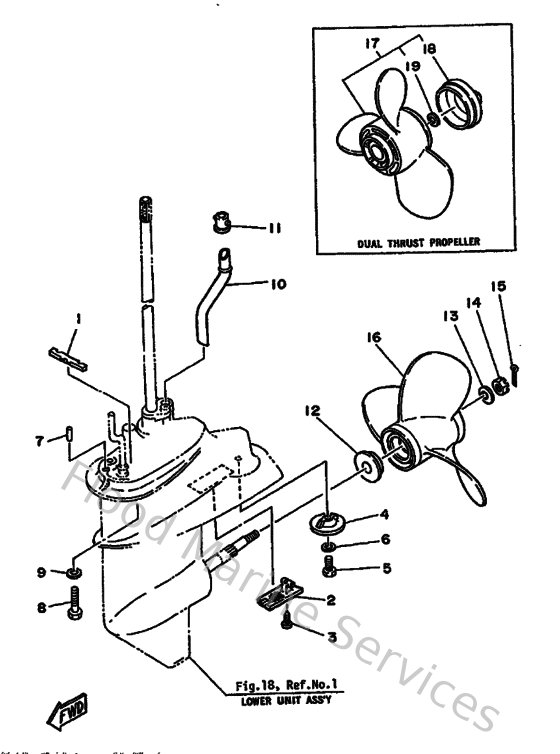

Diagram: Lower Casing & Drive 2
Parts List
Reference
Description
Price
1
682453750100
Damper, seal
Loading…
↗
2
683452140100
Cover Water Inlet
Loading…
↗
4
683452510000
Anode
Loading…
↗
5
973950601600
Bolt, hexagon deep recess
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
936061201900
Pin, dowel (614)
Loading…
↗
8
970950803500
Bolt(70w)
Loading…
↗
9
929900860000
Washer, plain (663)
Loading…
↗
10
6G9443610000
Tube, Water 1
Loading…
↗
11
626443650100
Damper, water seal 1
Loading…
↗
12
683459870100
Spacer 1
Loading…
↗
13
9020110M1400
Washer, plate(6m7)
Loading…
↗
14
9017110M0100
Nut castle (683)
Loading…
↗
15
914903002000
Pin cotter
Loading…
↗
16
6834594100EL
Propeller (3x9-1/4"x12"-j)
Loading…
↗
17
683W45920200
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
19
9020110M1500
Washer, plate(6g9)
Loading…
↗
