250AETOXLX (2000)
Lower Casing. Drive 2

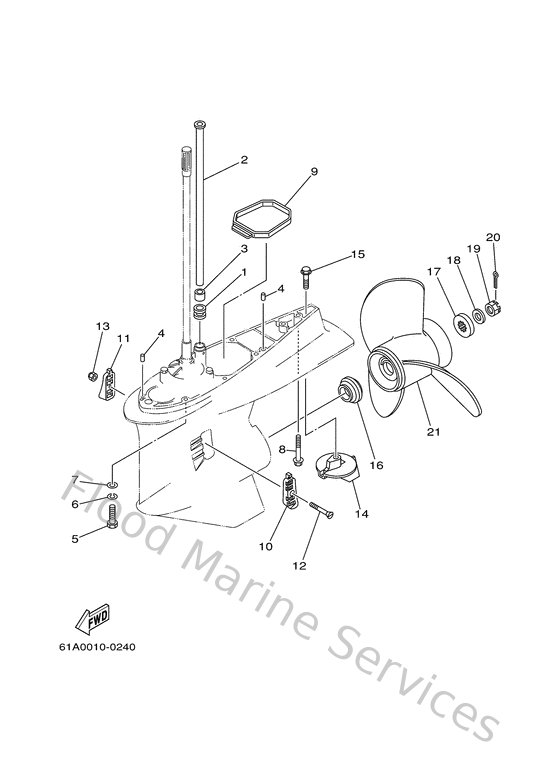

Diagram: Lower Casing. Drive 2
Parts List
Reference
Description
Price
1
6E5443660000
Damper, water seal 2
Loading…
↗
2
61A443612000
Tube, water
Loading…
↗
3
6E5443650000
Damper, water seal 1
Loading…
↗
4
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
5
970951004500
Bolt(64d)
Loading…
↗
6
929901010000
Ybs67-10 washer, spring
Loading…
↗
7
929951060000
Washer, plate
Loading…
↗
8
9011910MA200
Bolt, with washer
Loading…
↗
9
69J453750000
Damper, seal
Loading…
↗
10
61A452140000
Cover, water inlet
Loading…
↗
11
61A452150000
Cover, water inlet
Loading…
↗
12
9015205M0800
Screw, countersunk
Loading…
↗
13
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
14
61A453710000
Anode
Loading…
↗
15
9010510M0000
Bolt, hexagon (663)
Loading…
↗
16
6E5459870100
Spacer 1
Loading…
↗
17
688459970100
Spacer 2
Loading…
↗
18
929901820000
Washer (6e5)
Loading…
↗
19
9017118M0400
Nut, castle (6e5)
Loading…
↗
20
914904003000
Pin, cotter (663)
Loading…
↗
21
61A459780098
Propeller (3x15"x17"-t)
Loading…
↗
