Yamaha Outboard Parts - Lower Casing. Drive 2 - 40XMH (2001) | Flood Marine
New Search
Parts
New Outboards
Home
40XMH (2001)
Lower Casing. Drive 2

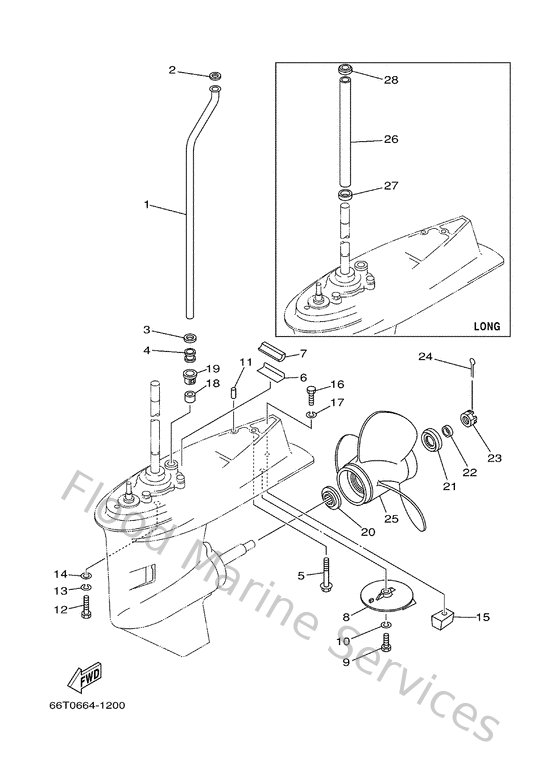

Diagram: Lower Casing. Drive 2
Parts List
Reference
Description
Price
1
66T443610000
Tube, water
Loading…
↗
2
902021206000
Washer, plate(663)
Loading…
↗
3
904301207200
Gasket
Loading…
↗
4
663443670000
Damper, water seal 3
Loading…
↗
5
9011908M4400
Bolt, with washer
Loading…
↗
6
663453760000
Guide, seal damper
Loading…
↗
7
63D453750000
Damper, seal
Loading…
↗
8
664453710100
Tab-trim
Loading…
↗
9
970950802500
Bolt (62g)
Loading…
↗
10
929900810000
Ybs67-8 washer, spring
Loading…
↗
11
936061201900
Pin, dowel (614)
Loading…
↗
12
970751004000
Bolt, hexagon deep recess
Loading…
↗
13
929951010000
Ybs67-10 washer, spring
Loading…
↗
14
929901060000
Washer, plate
Loading…
↗
15
67C452510000
Anode
Loading…
↗
16
970950803500
Bolt(70w)
Loading…
↗
17
929950810000
Ybs67-8 washer, spring
Loading…
↗
18
663443660000
Damper, water seal 2
Loading…
↗
19
63D443120000
Cover, water pump housing
Loading…
↗
20
663459870200
Spacer
Loading…
↗
21
66T459970000
Spacer 2
Loading…
↗
22
9038922M0100
Bush
Loading…
↗
23
901711601100
Nut, castle (663)
Loading…
↗
24
914903002500
Pin cotter
Loading…
↗
25
6634595801EL
Propeller (3x11-1/4"x14"-g)
Loading…
↗
26
66T443621000
Tube, water 2
Loading…
↗
27
9048025M7000
Grommet
Loading…
↗
28
9048030M7100
Grommet
Loading…
↗
